Sale

Warm Audio

IR-NWAR013

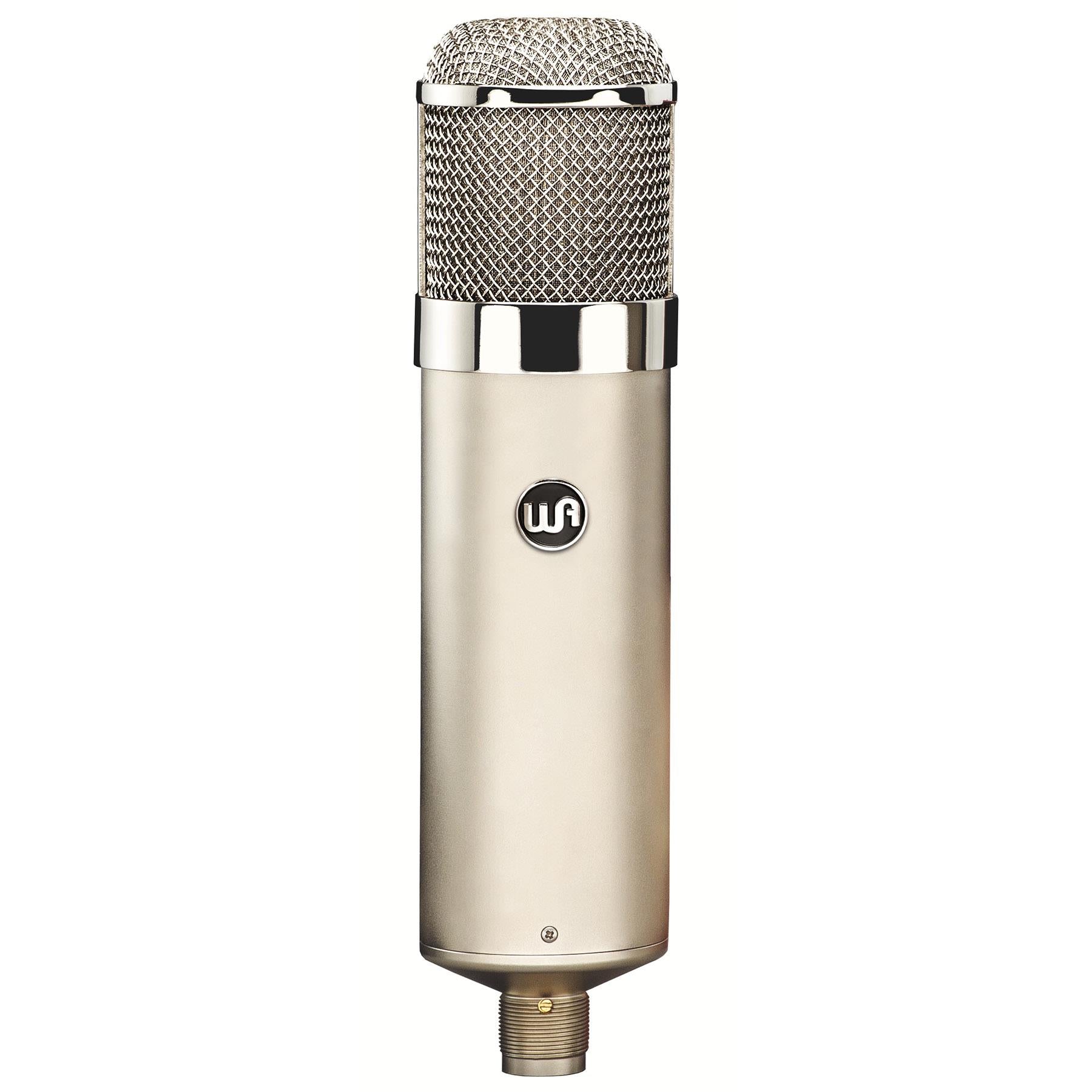

Warm Audio WA-47 Tube Vintage Style Microphone

1 item left

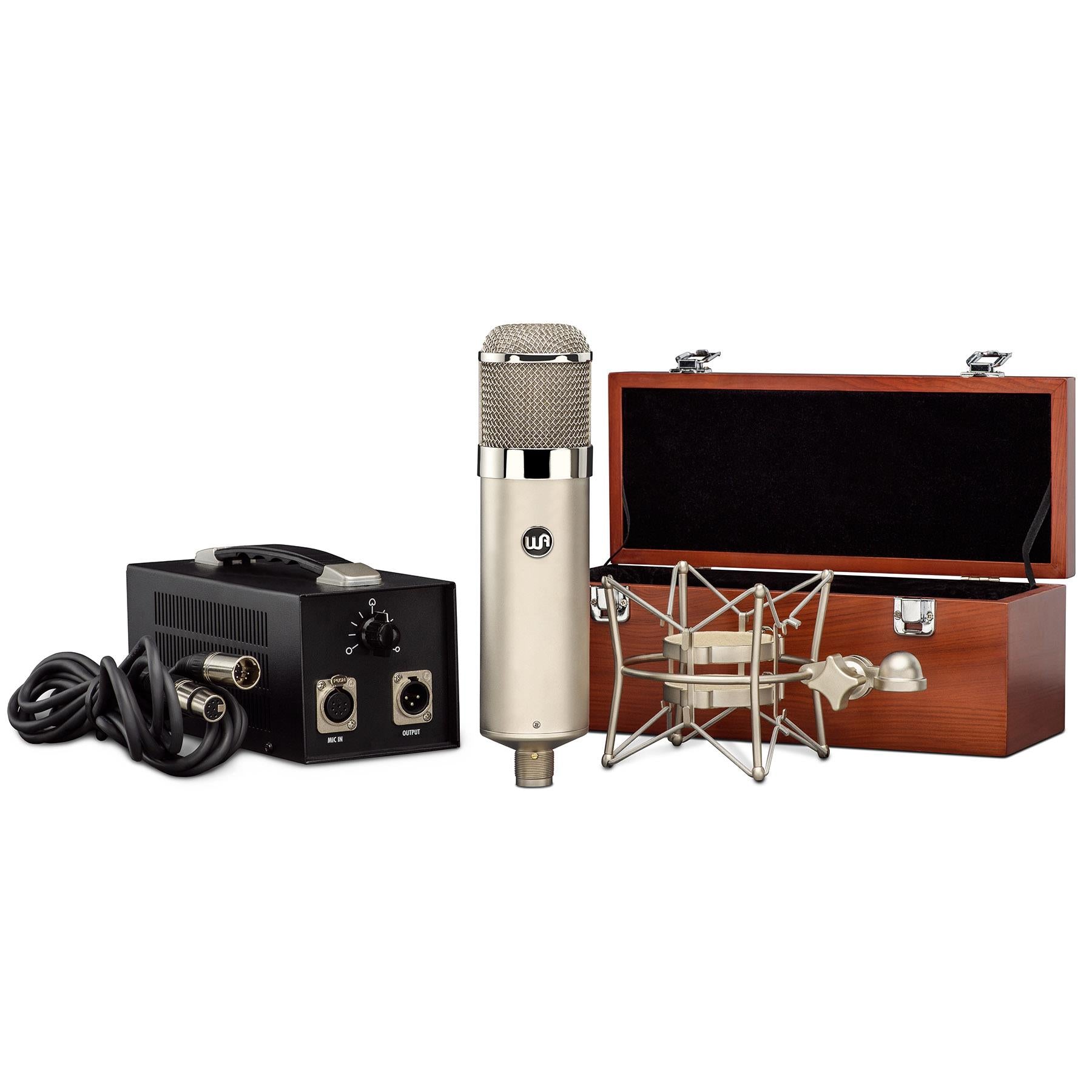

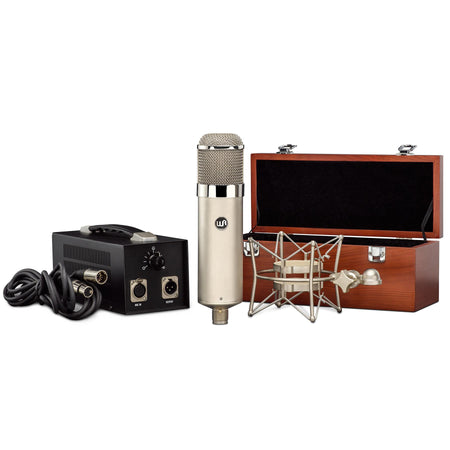

This brand new Warm Audio WA-47 Tube Condenser Microphone comes bundled with a Shock Mount, Power Supply, Tube Mic Cable, and a Wood Storage Box.

Condition:
Brand New.

Product Details:
The WA-47 is an all vacuum tube, large diaphragm, transformer balanced, multi-pattern (9), large condenser microphone, based on the classic '47 that has been used on countless hit records for the last 50+ years. The WA-47 is designed for pro studio, home studio, live, and broadcast applications and sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources. The classic '47 became extremely popular in the 1960's and is now considered one of the greatest microphones ever made. The classic '47 is still widely used today in professional recording studios but have become extremely rare and expensive to acquire.

Designing the WA-47 to sound like the classic '47 was no easy task, especially considering that some of the vintage components are no longer available. We compared and listened to 2 different vintage '47 mics and found that they both sounded amazing but also sounded a little different from each other. These comparison tests became the benchmark for tailoring our WA-47 sonics to sit right in with these 2 vintage '47 mics. We are pleased to release such a gorgeous sounding classic to the market at a price that's reachable to more people than ever before. We are also proud to mention that the WA-47 sounds legitimately indistinguishable to the vintage '47's we auditioned on several sources.

As with all Warm Audio products, we focus heavily on quality components to ensure we release the best sounding product possible. The WA-47 is packed with top end components that are carefully sourced from many of the top pro audio component suppliers in the world.

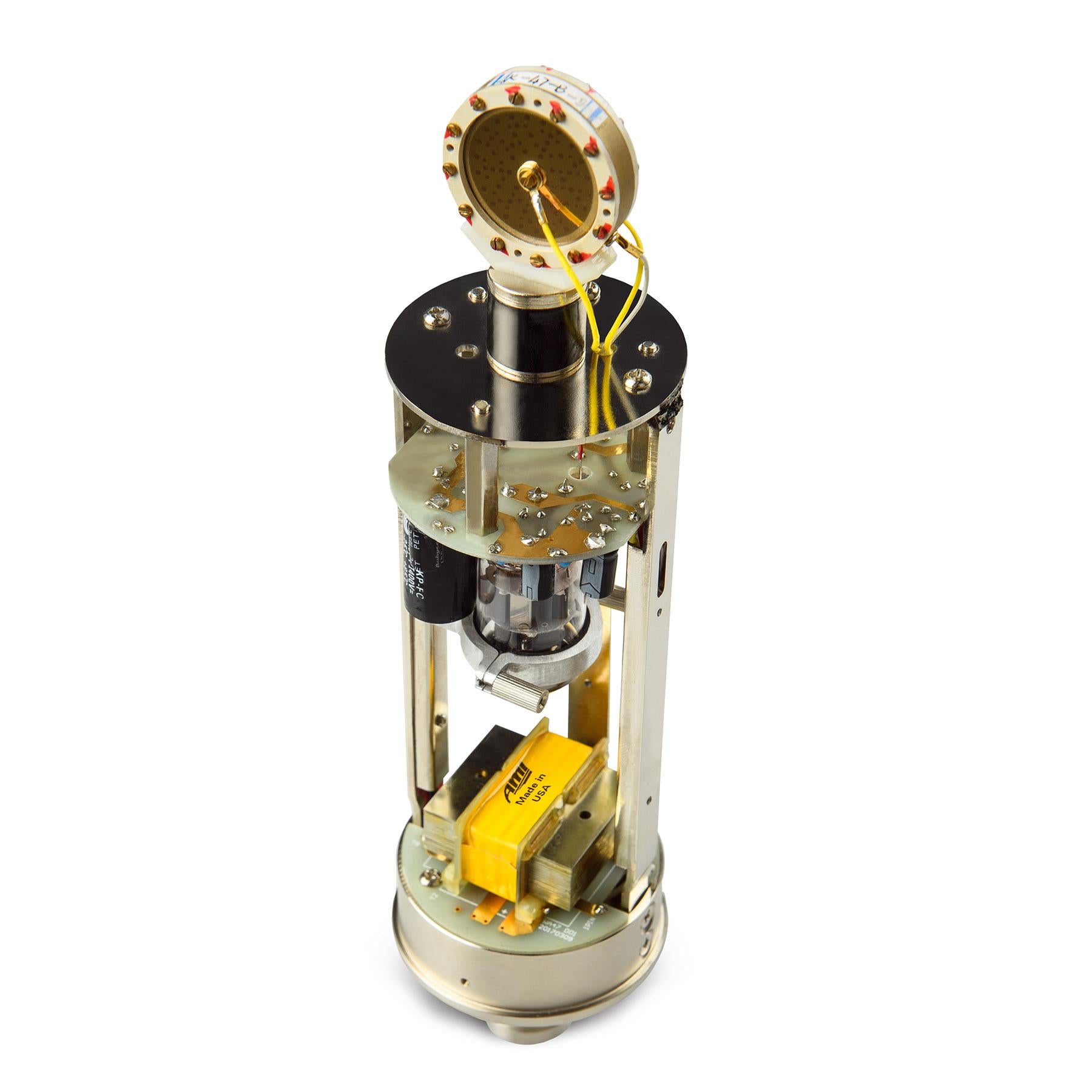

  • Custom true '47 capsule reproduction (k47 style) - Model# WA-47-B-80v
  • Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns NOS mylar (PET film)
  • TAB-Funkenwerk (AMI) USA output transformer
  • JJ Slovak 5751 vacuum tube
  • Gotham 5 meter GAC-7, 7-pin tube microphone cable
  • Wima, Solen French, and Polystyrene capacitors
  • Polar Patterns: 9 patterns - Cardioid, Omni, figure-of-eight + 6 mixed patterns
  • Self-noise: 11dBA
  • Dynamic range: 130dBA
  • Maximum SPL: 140dB (<0.5% THD)
  • Frequency Range: 20 Hz~20 kHz
  • Output Impedance: 200 ohms
  • Rated Load Impedance: ‰¥2kOhms
  • S/N Ratio: 82dBA
  • Equivalent Noise: 10dBA (IEC651)
  • External IEC grounded PSU
  • Includes: Microphone, Wood box, PSU, Shockmount, Gotham 7 pin GAC-7 cable, IEC power cable
