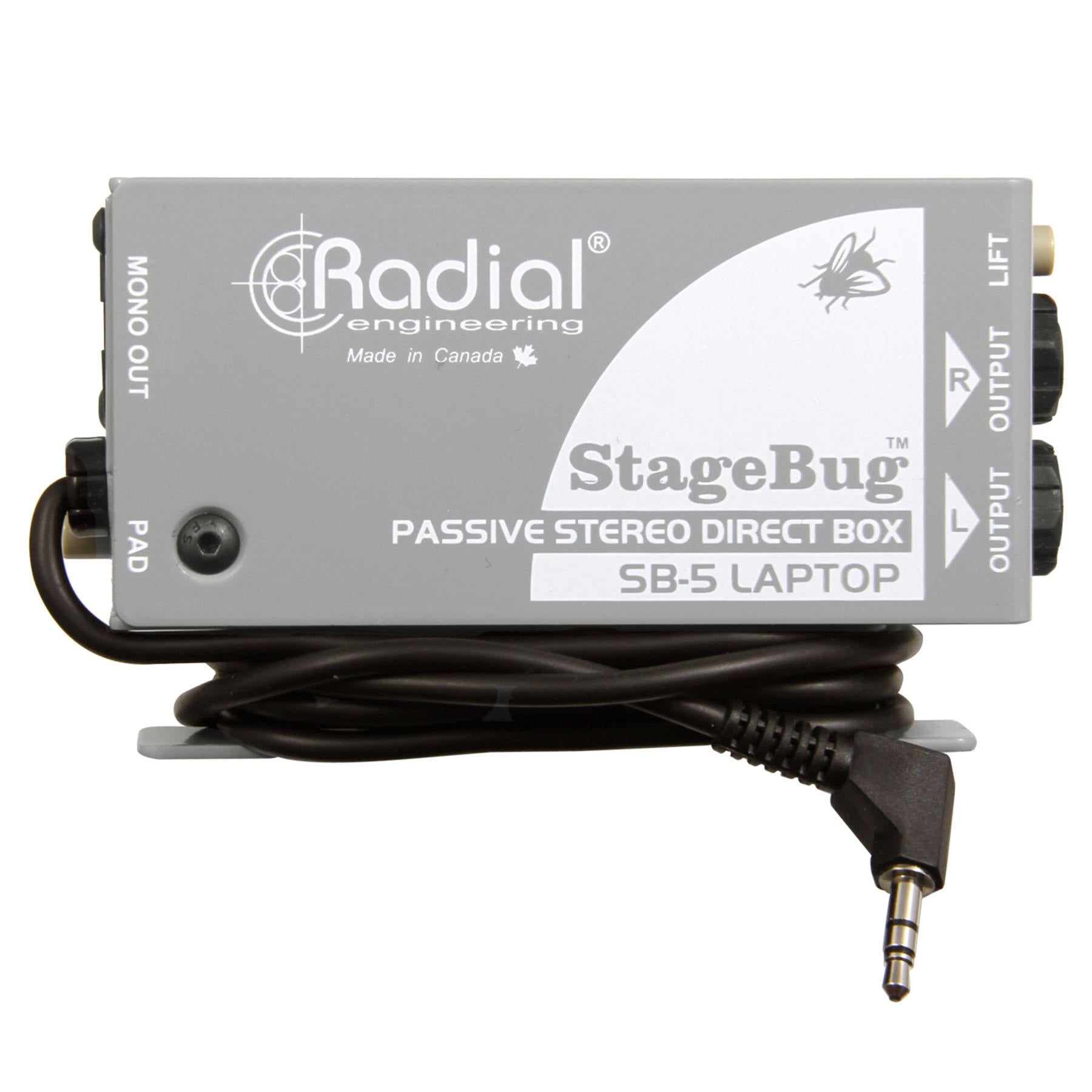

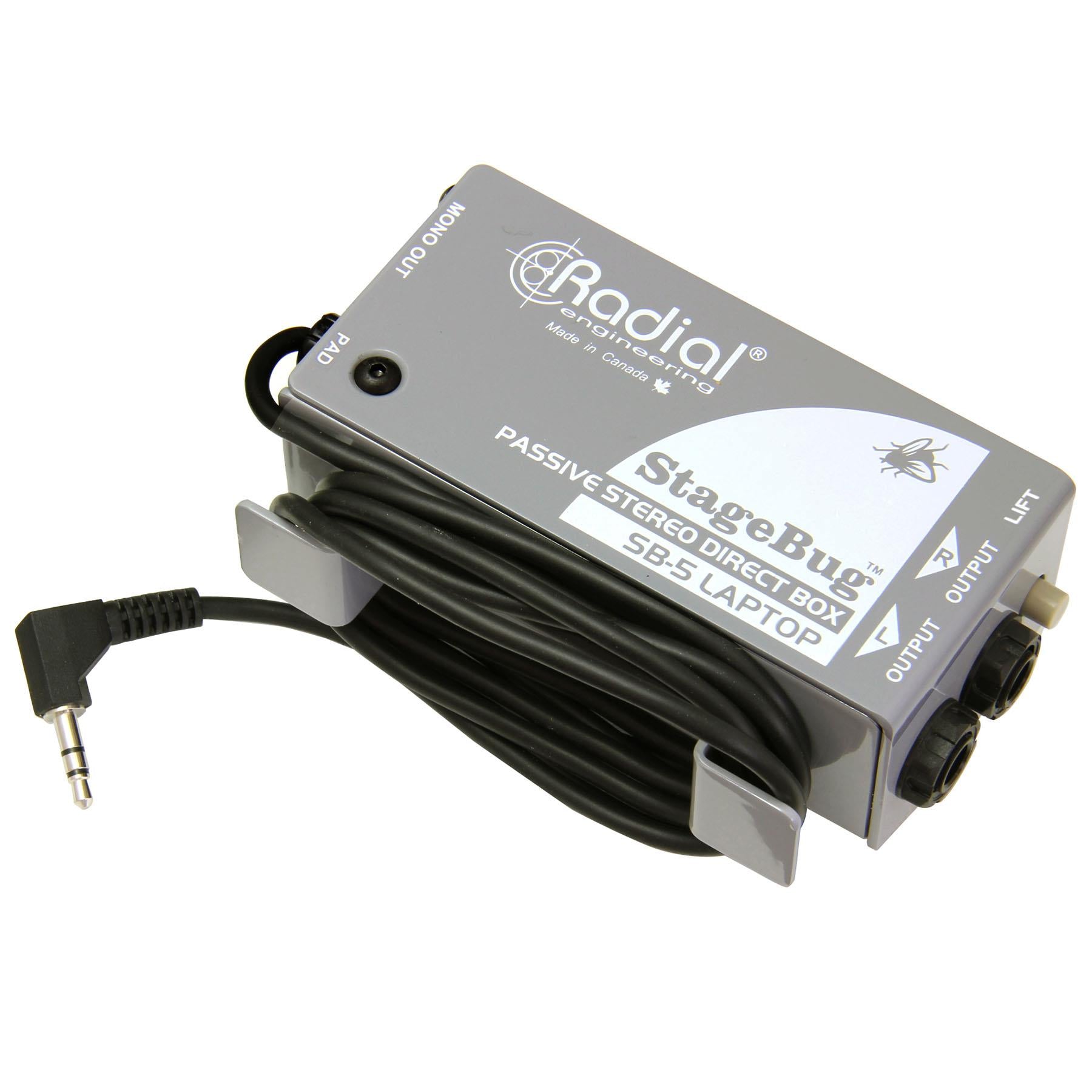

Radial Engineering StageBug SB-5 Laptop Direct Box - SB5 DI

The Radial Stage Bug SB-5 is a compact stereo direct box designed to accommodate laptop computers, tablets and other consumer audio products when amplifying the signal through a PA system.

The passive design begins with an integrated input cable that connects from the headphone out via a flexible 1.5m (5') cable that is terminated with a standard 3.5mm (1/8") stereo connector. The cable is secured via a clamping strain relief and is wrapped using the sidewinder cleat for easy storage. This of course eliminates having to locate a cable making it easier to deploy in fast paced work environments. Inside, the unbalanced stereo signal is sent to a pair of custom wound transformers which balances the signals for long cable runs - upwards to 100 meters (300'), without noise. Transformers further benefit by isolating the computer from the PA system to help eliminate hum and buzz caused by ground loops. This is augmented with a ground lift switch to further reduce ground contamination.

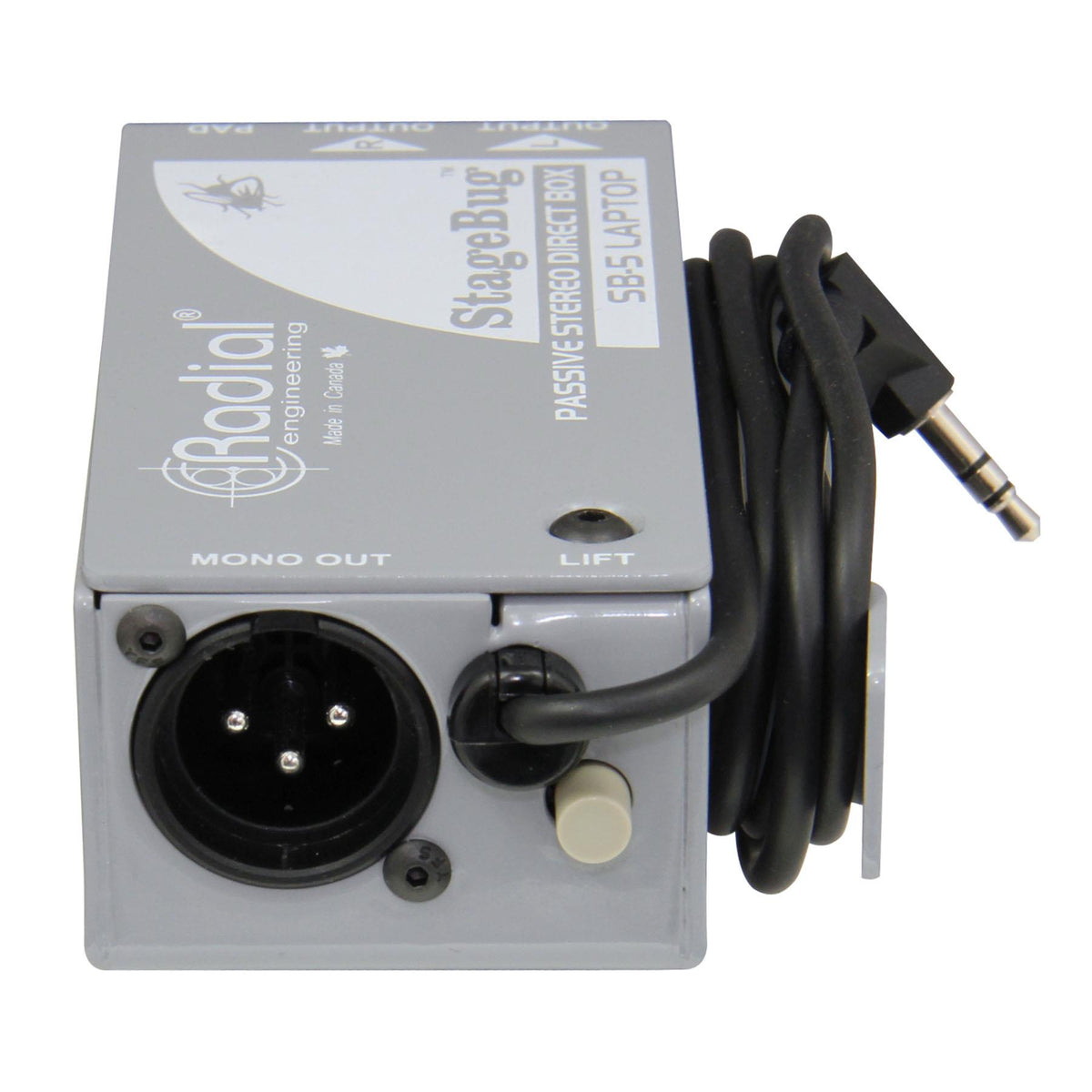

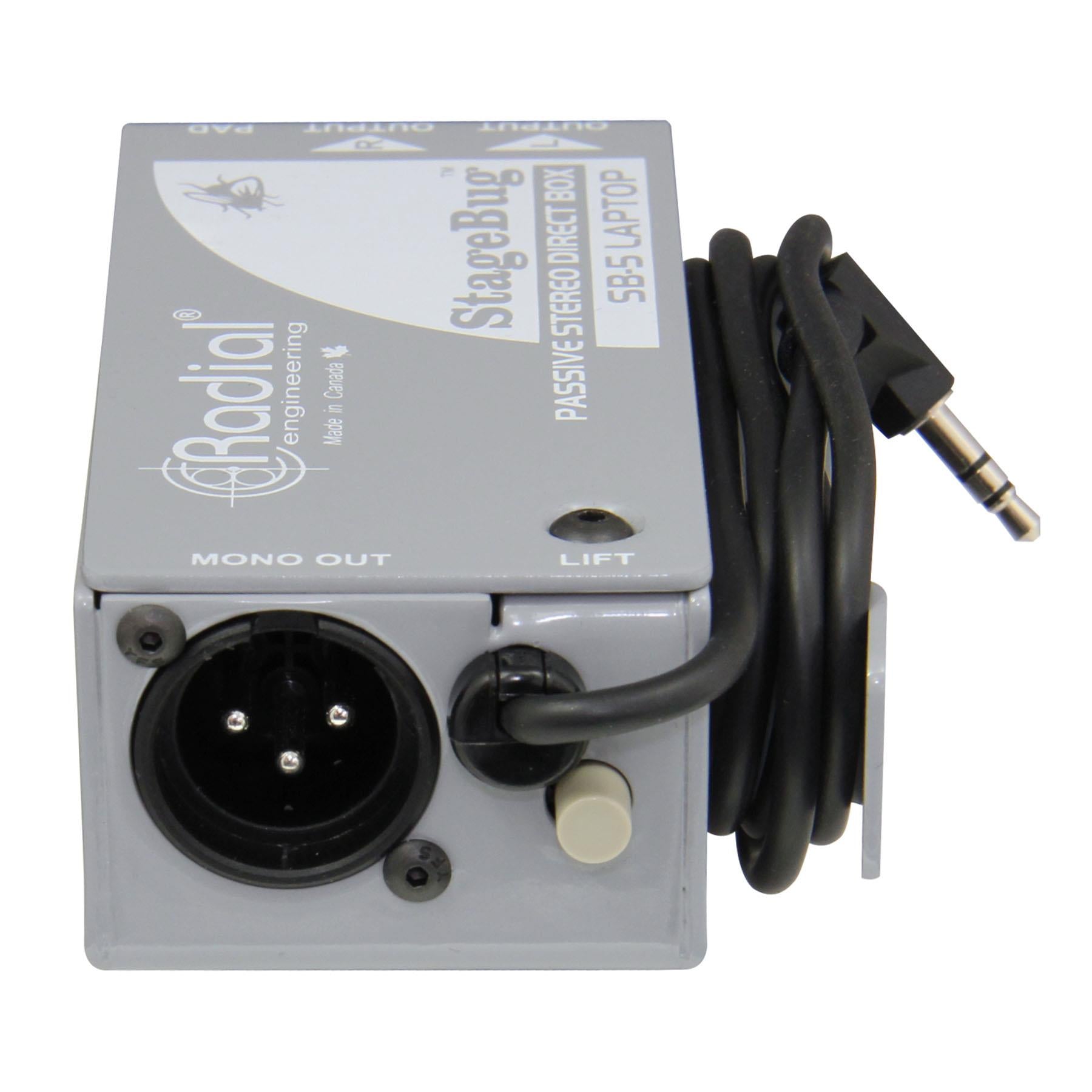

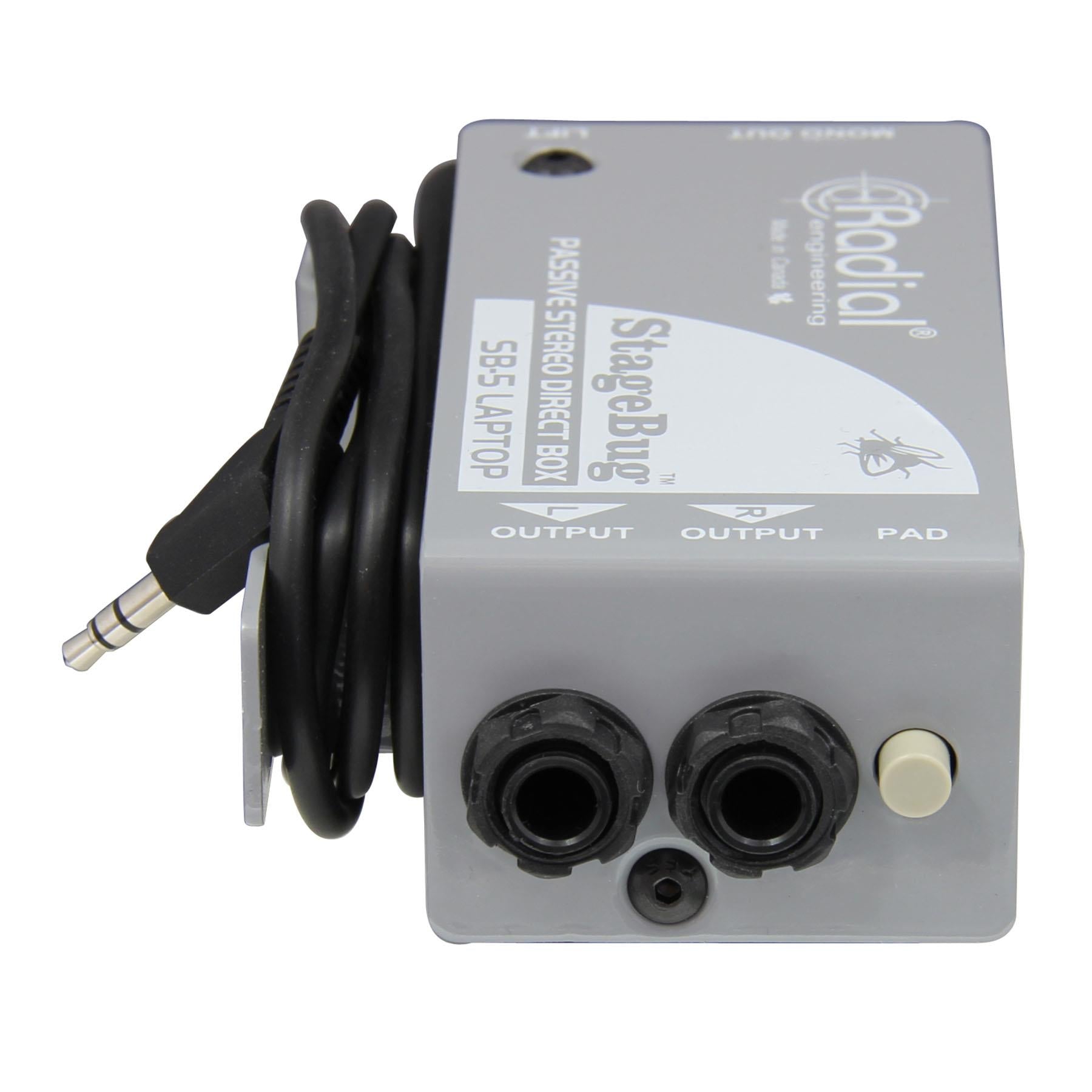

A choice of output connectors is available including a stereo set of 1/4" TRS jacks for full stereo operation or an XLR out that automatically sums the left-right program material to mono. This can save valuable channels on the PA system and makes setup easier in situations where full stereo reproduction is not required. A -15dB input pad may be engaged to reduce sensitivity and enable extra high output sources to be connected without distortion.

• Active DI optimized for piezo transducers
• Smoothes out peaks, eliminates squawk
• High pass filter eliminates resonance
• Ultra compact to fit in your guitar case

Warranty Period

3 Years
