Radial Engineering MIX 2:1 2-Channel Passive Mixer bundle with XLR & TRS Cables

Save $38.89 with this exclusive bundle from Pixel Pro Audio. This bundle includes the Radial Engineering MIX 2:1 2-Channel Passive Mixer, a 20-foot Professional XLR Mic/Line Cable, and (2) Hosa CSS-105 5-foot Balanced 1/4" TRS Male to 1/4" TRS Male Cables.

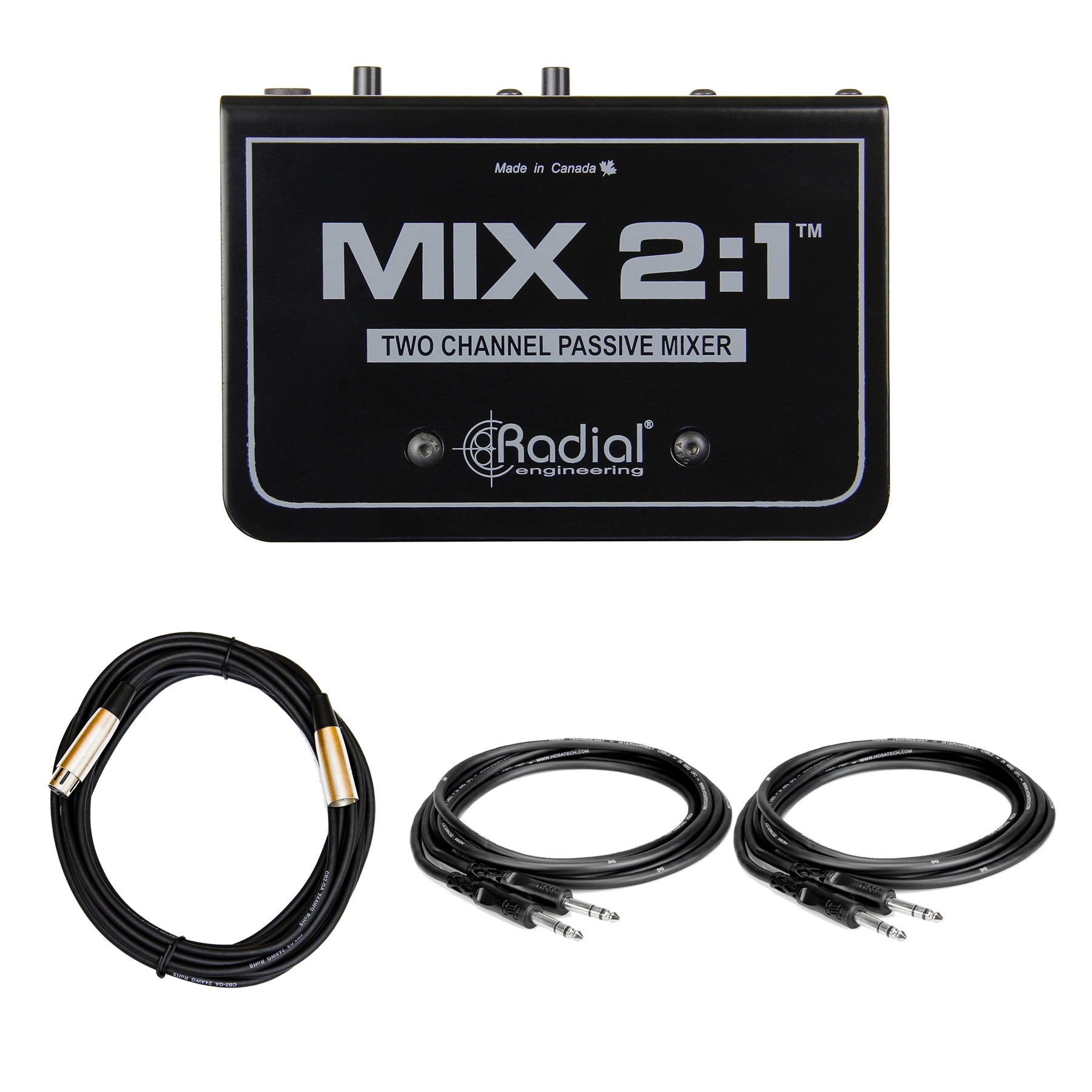

Here's a look at what you'll get with this bundle:

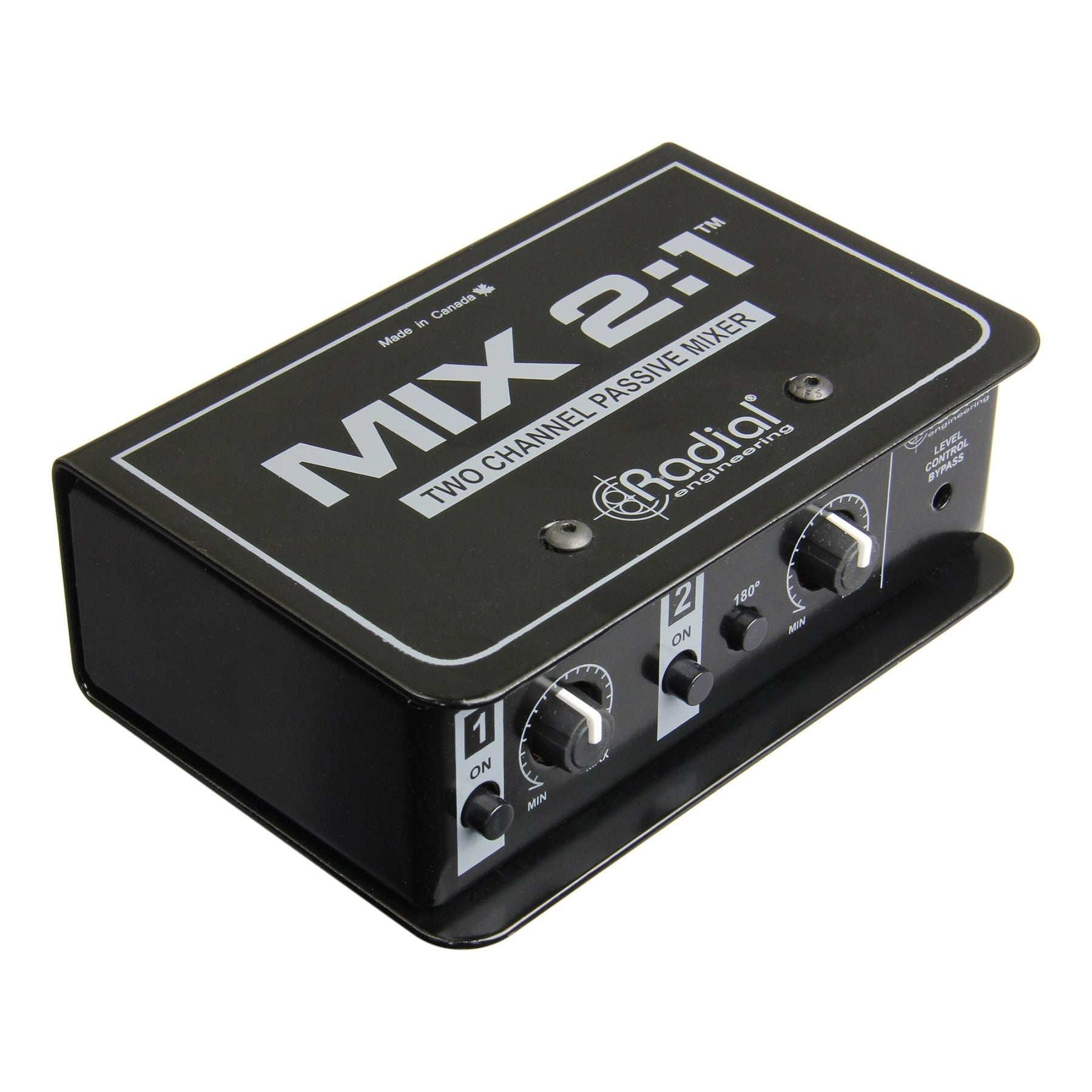

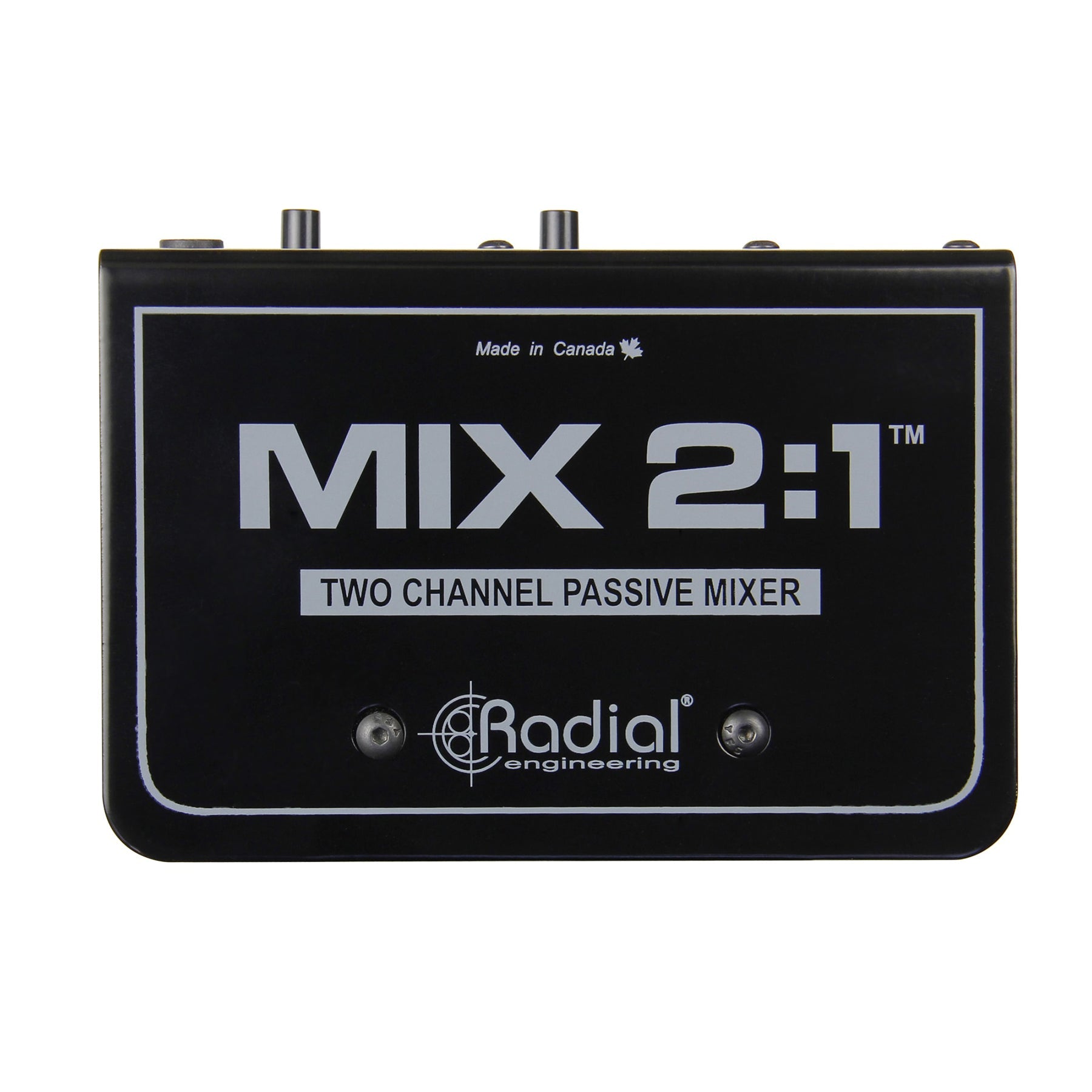

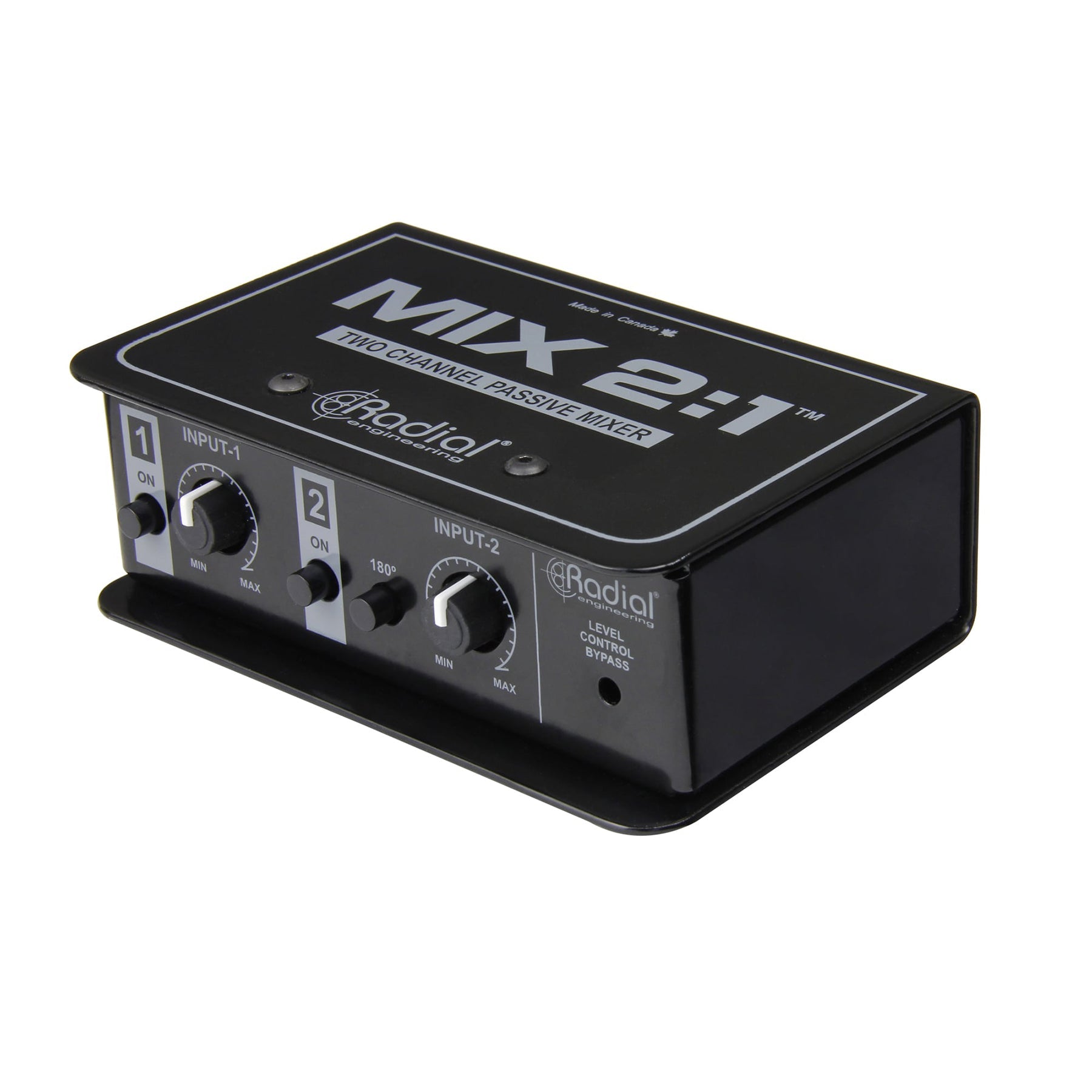

Radial Engineering MIX 2:1 2-Channel Passive Mixer
The MIX 2:1™ is a simple yet highly useful mixer that passively sums two audio channels down to one. This enables you to easily sum the stereo outputs of a console, recording interface, or portable playback device down to mono, or to mix any two sig

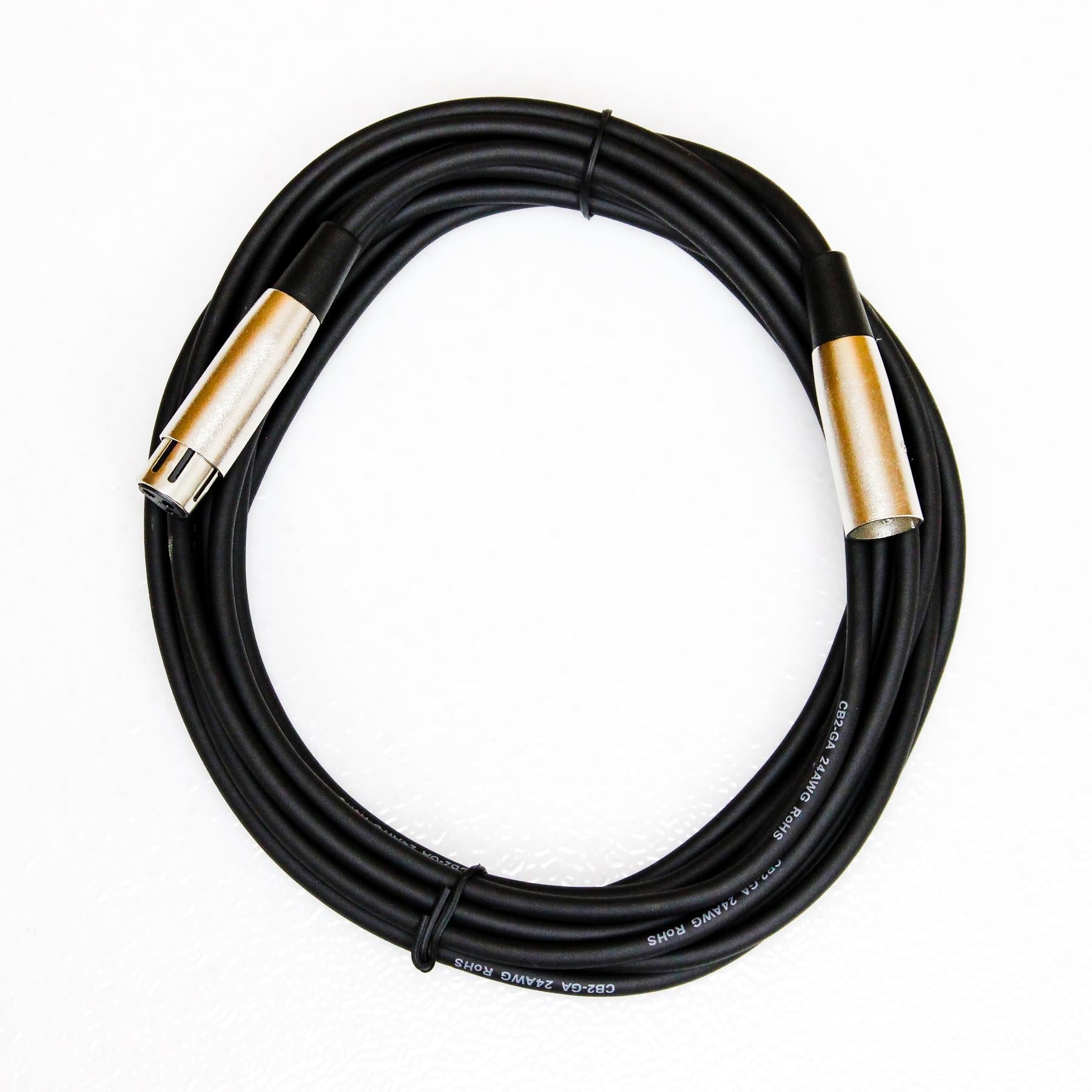

20-foot Professional XLR Mic/Line Cable
Professional balanced cable with nickel plated male XLR to female XLR connectors for durability. This microphone cable is flexible, durable, and perfect for every application.

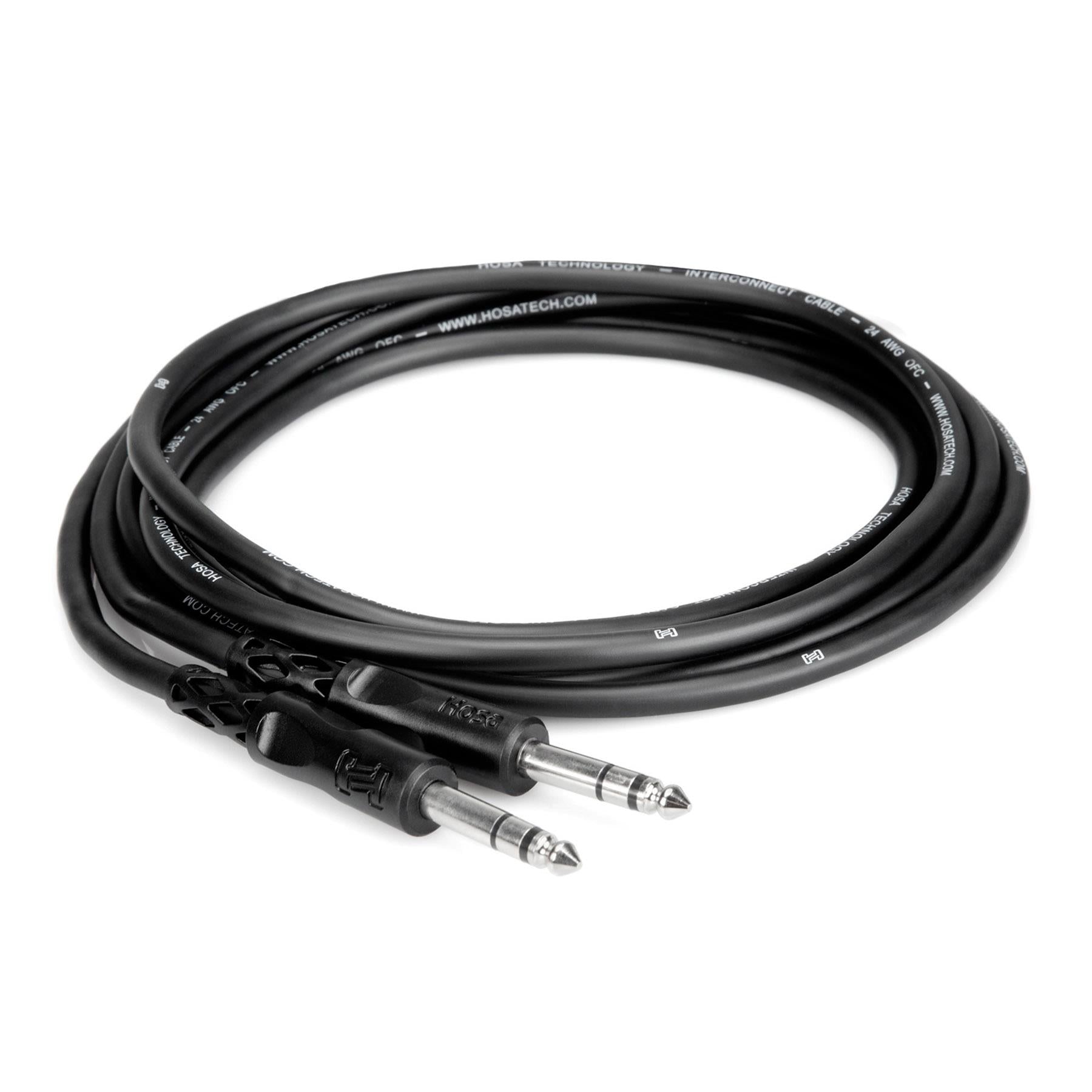

(2) Hosa CSS-105 5-foot Balanced 1/4" TRS Male to 1/4" TRS Male Cable
This cable is designed to interconnect pro audio gear with balanced phone jacks. It may also be used as a stereo interconnect.

Get more for your setup with this exclusive bundle from Pixel Pro Audio.

Additional Product Details

The MIX 2:1™ is a simple yet highly useful mixer that passively sums two audio channels down to one. This enables you to easily sum the stereo outputs of a console, recording interface, or portable playback device down to mono, or to mix any two signals together and balance their relative input levels.

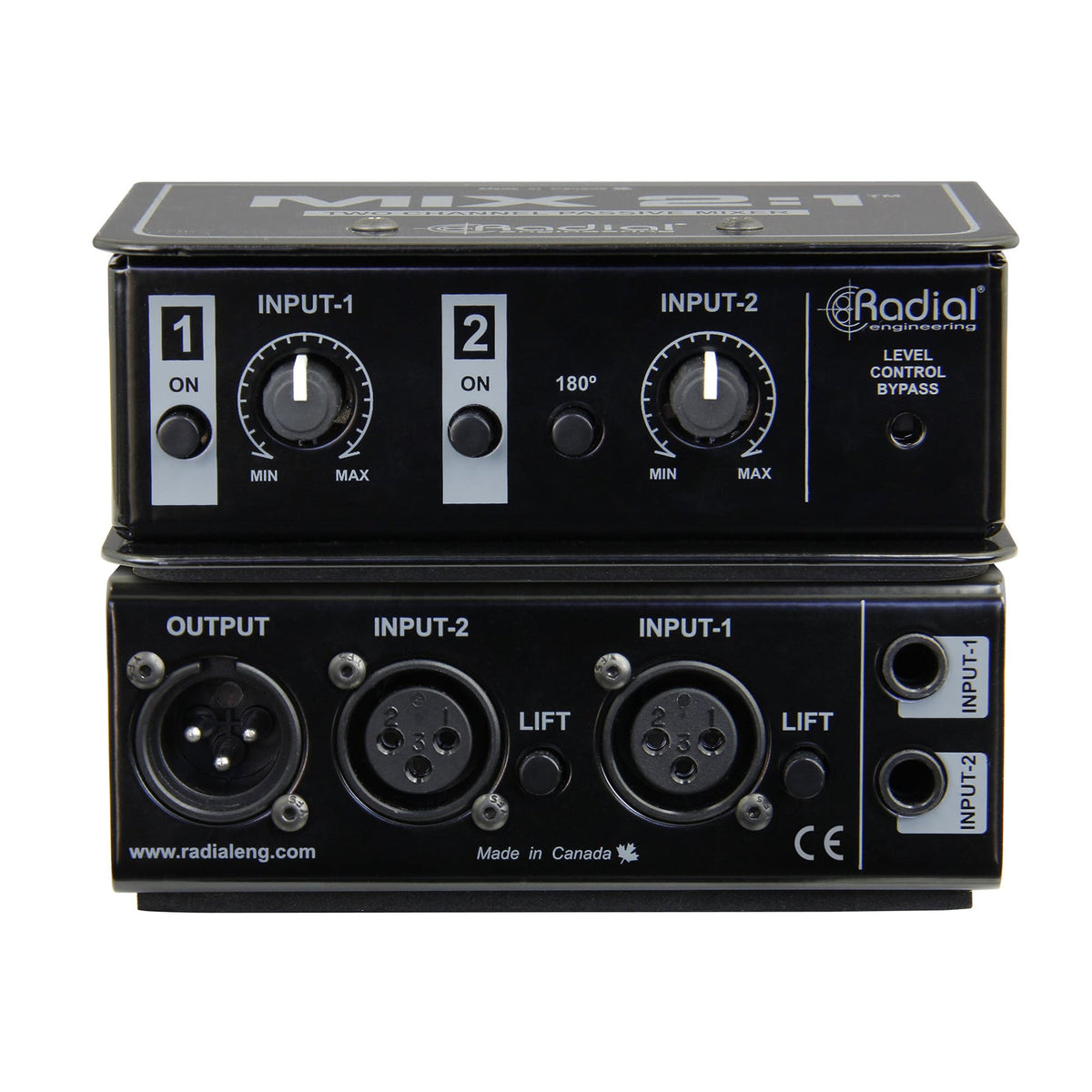

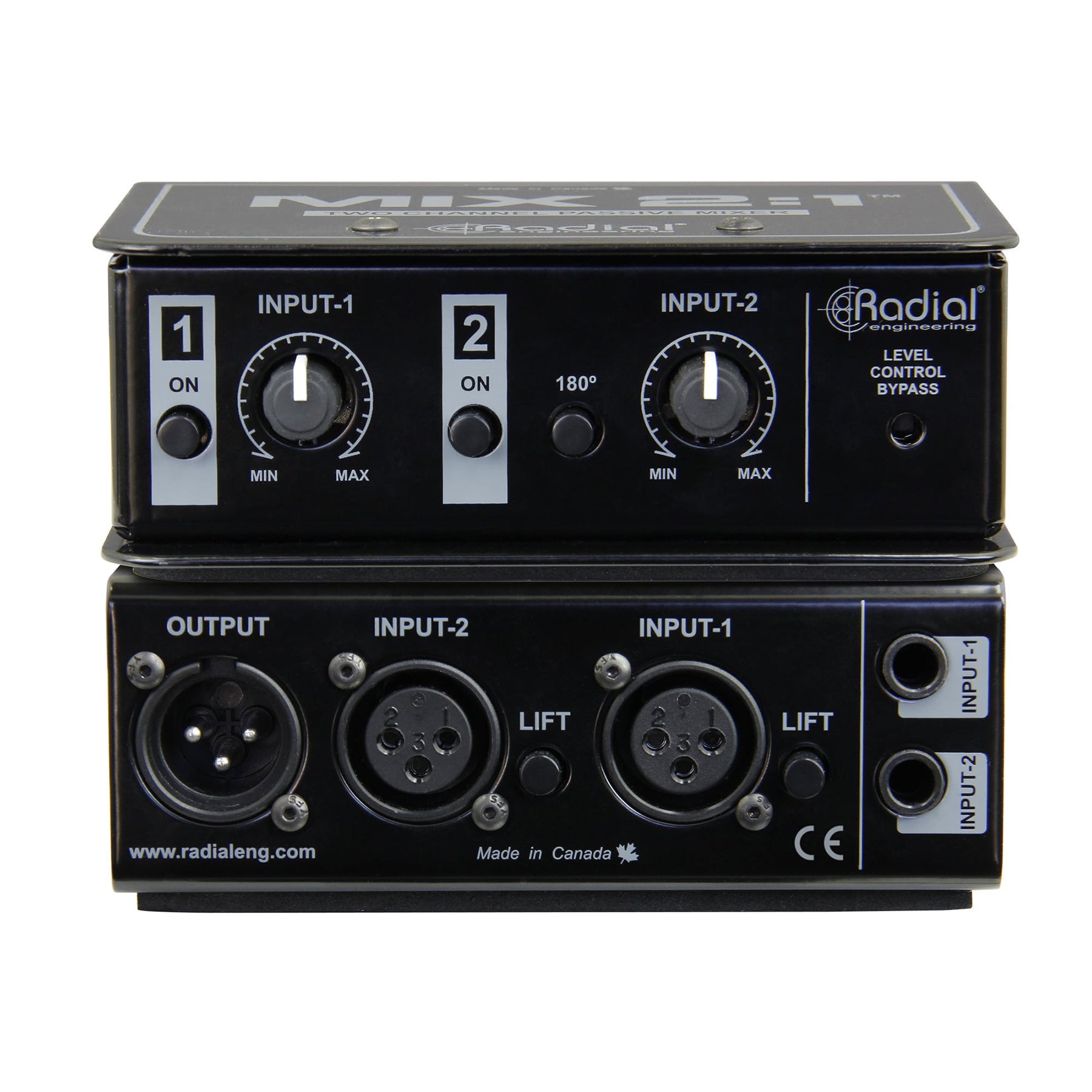

The MIX 2:1 uses a completely passive circuit that requires no power to operate and allows you to sum two signals together with minimal coloration or distortion. Either signal can be attenuated to create the desired blend between the two, or the level controls can be bypassed altogether, summing each input equally. The MIX 2:1 automatically compensates for the 6dB in voltage gain when summing two in-phase signals together, so you don't overload the next device in your signal chain. Ground lift switches are provided to remove buzz and hum from ground loops, and the MIX 2:1 is housed in a rugged steel chassis to handle use in the studio and on the road.

• Mix two channels to a single mono output

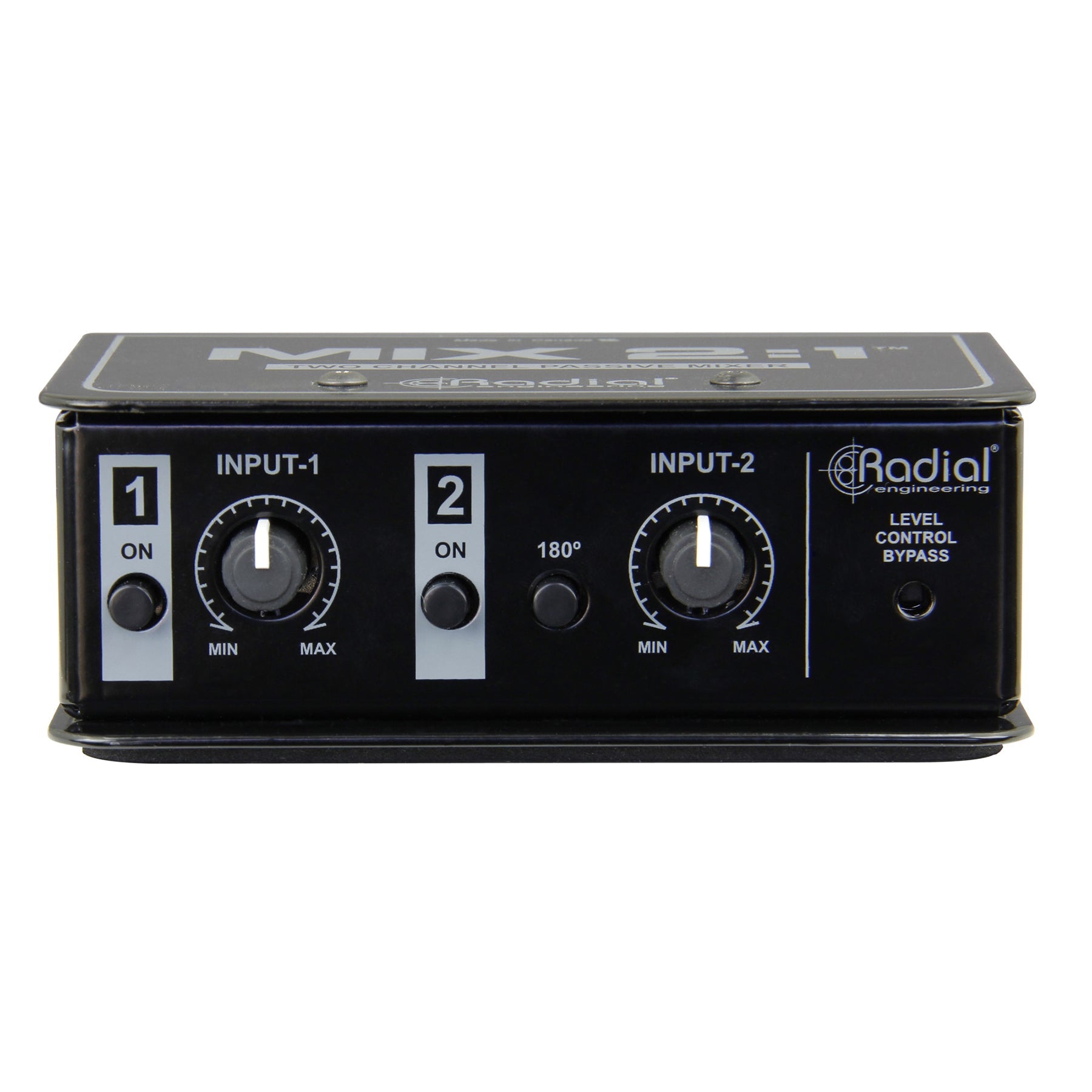

• Individual level controls can be bypassed when not in use
• Balanced 1/4" TRS and XLR inputs
• Completely passive, no need for power

Combine two balanced mic or line-level signals

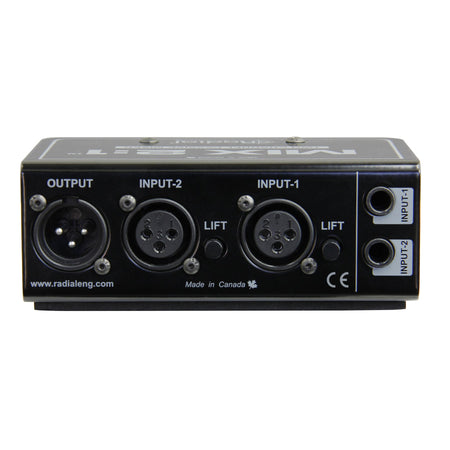

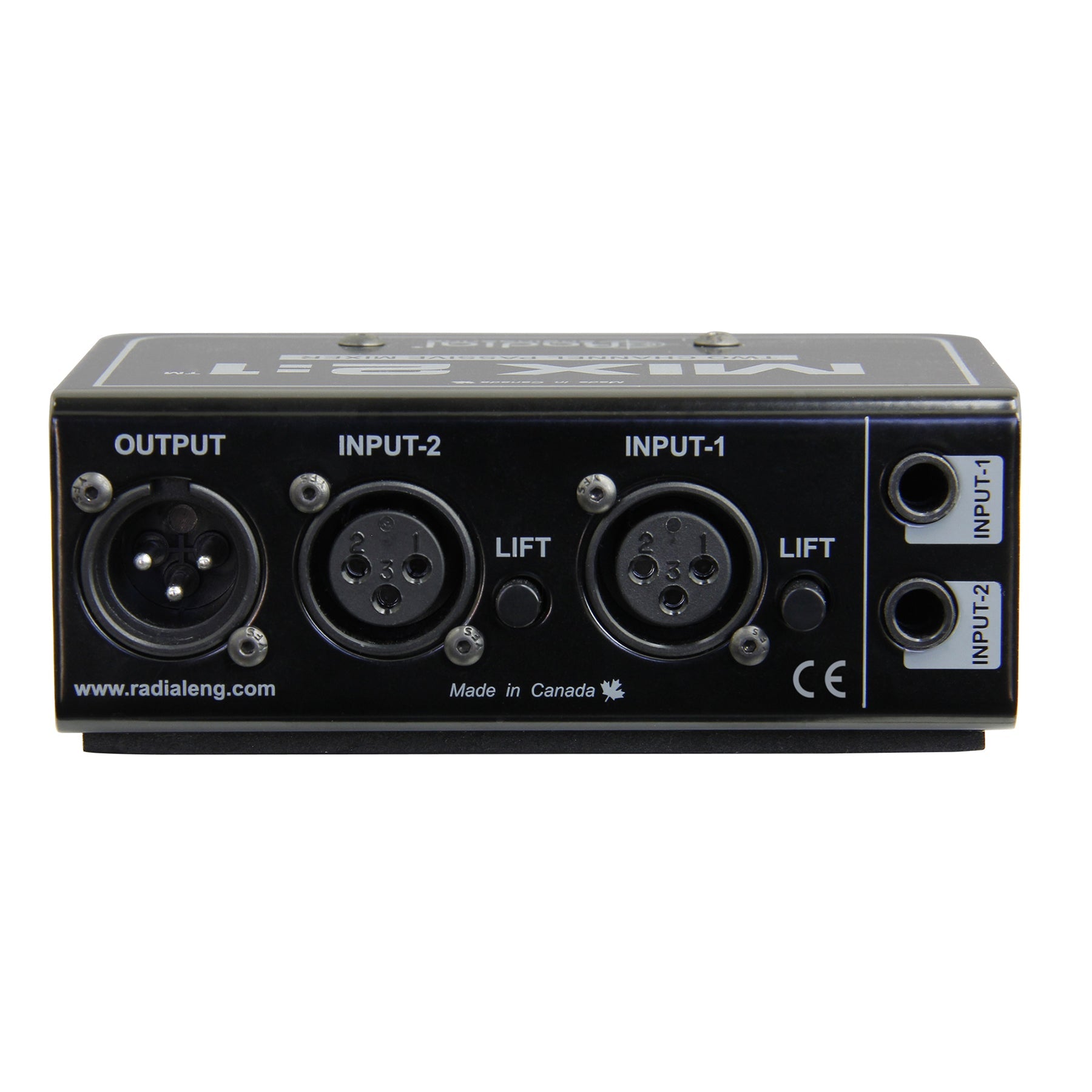

The MIX 2:1 makes it easy to sum together any two signals, whether it's two microphones on a single guitar amplifier, or the stereo line outputs of a mixing console. At the inputs of the MIX 2:1, both 1/4" TRS and XLR connectors are available, with ground lift switches to eliminate buzz and hum from ground loops and ensure noise-free operation. A trim control is also featured on each input, so if you are connecting two separate mono sources such as the outputs of two mic preamps, they can each be attenuated as needed to match their levels at the output. After both signals are passively summed together, they feed a single XLR output that can be connected to a powered speaker, or the input of a console or recording interface.

Applications

Mix the output of two mic preamps to a single track
Combine two tracks to a single input on your audio interface. Use the 180° phase flip to ensure phase coherency between the two inputs.

Summing a stereo aux to a mono input
Engage the level control bypass to sum both channels at unity gain into the mono input of a powered speaker or a recording device.

Summing a stereo source to a single channel on a console
When you're short on channels, the MIX 2:1 allows you to sum a stereo output down to mono, using only one channel on the console.

Mix two dynamic microphones together into a single preamp
The MIX 2:1 works with mic-level signals as well, which is useful when you're low on available input channels, or want to process two mics using the same signal chain. Ensure phantom power is disengaged when connecting the Mix 2:1 to a microphone preamp.
