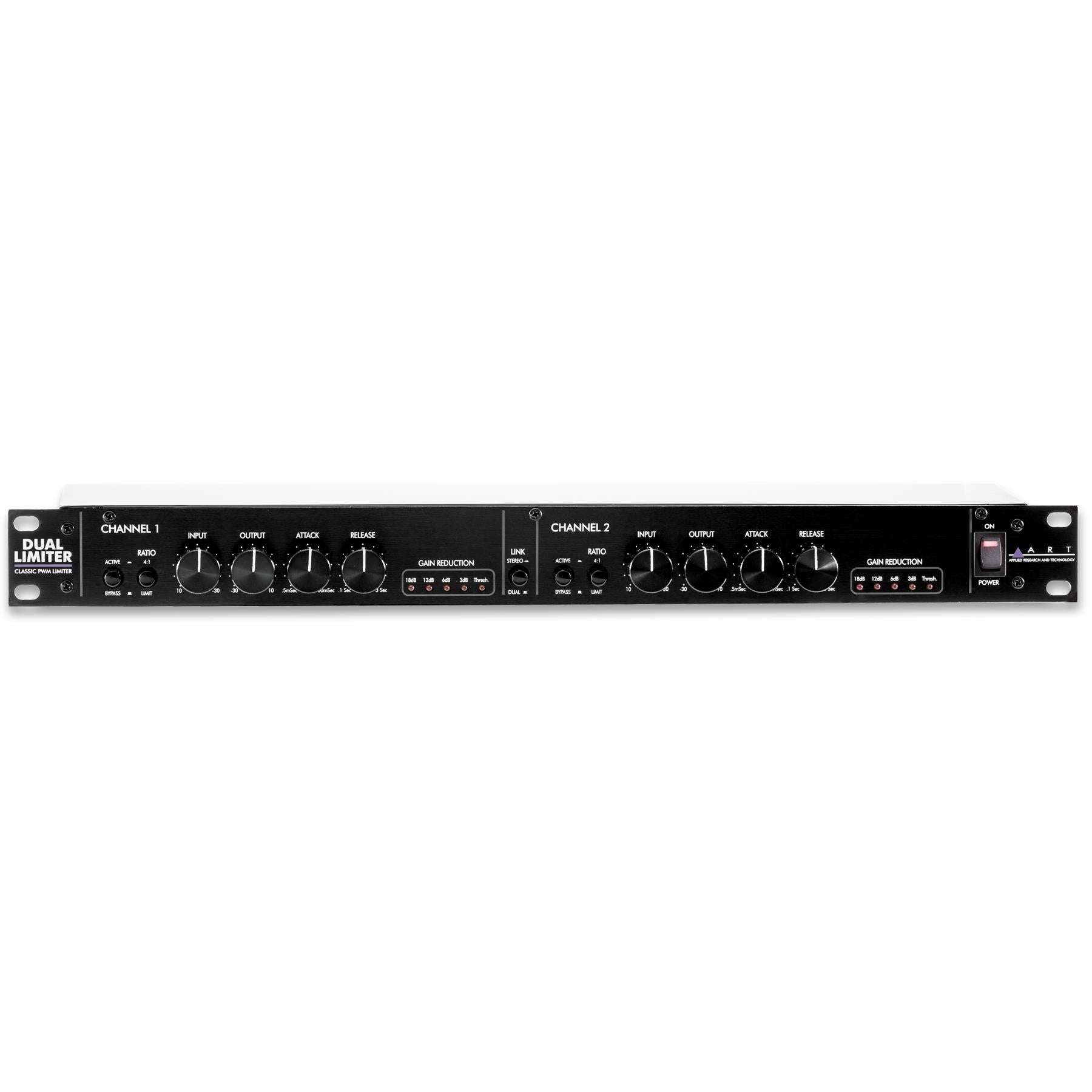

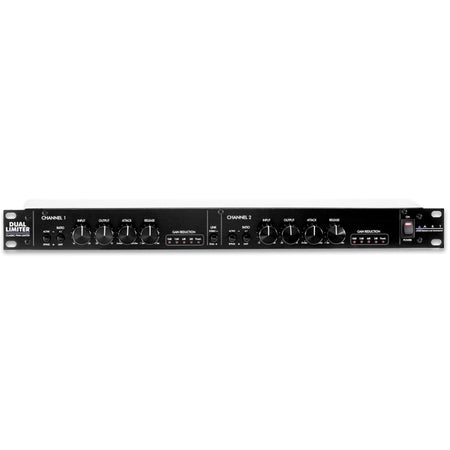

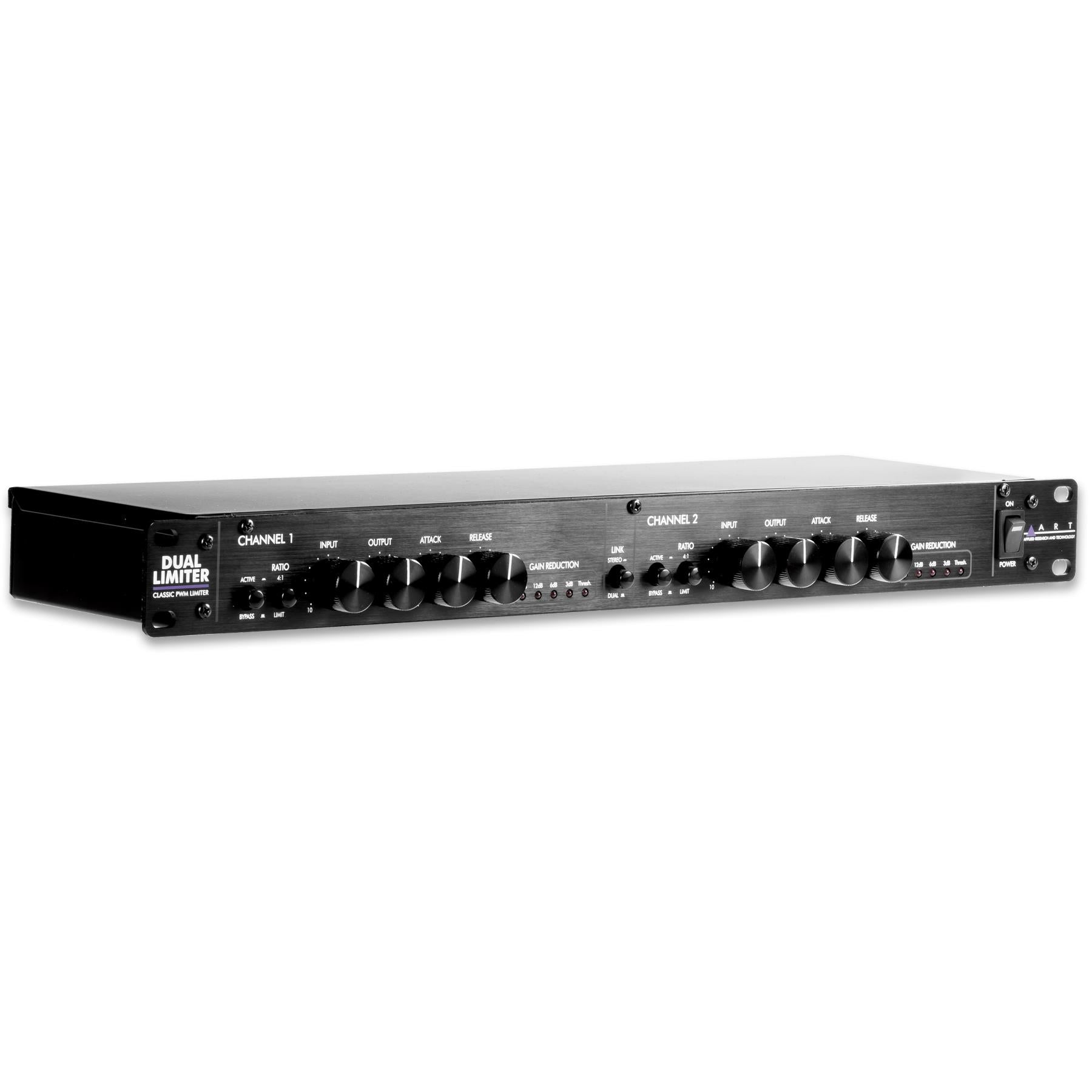

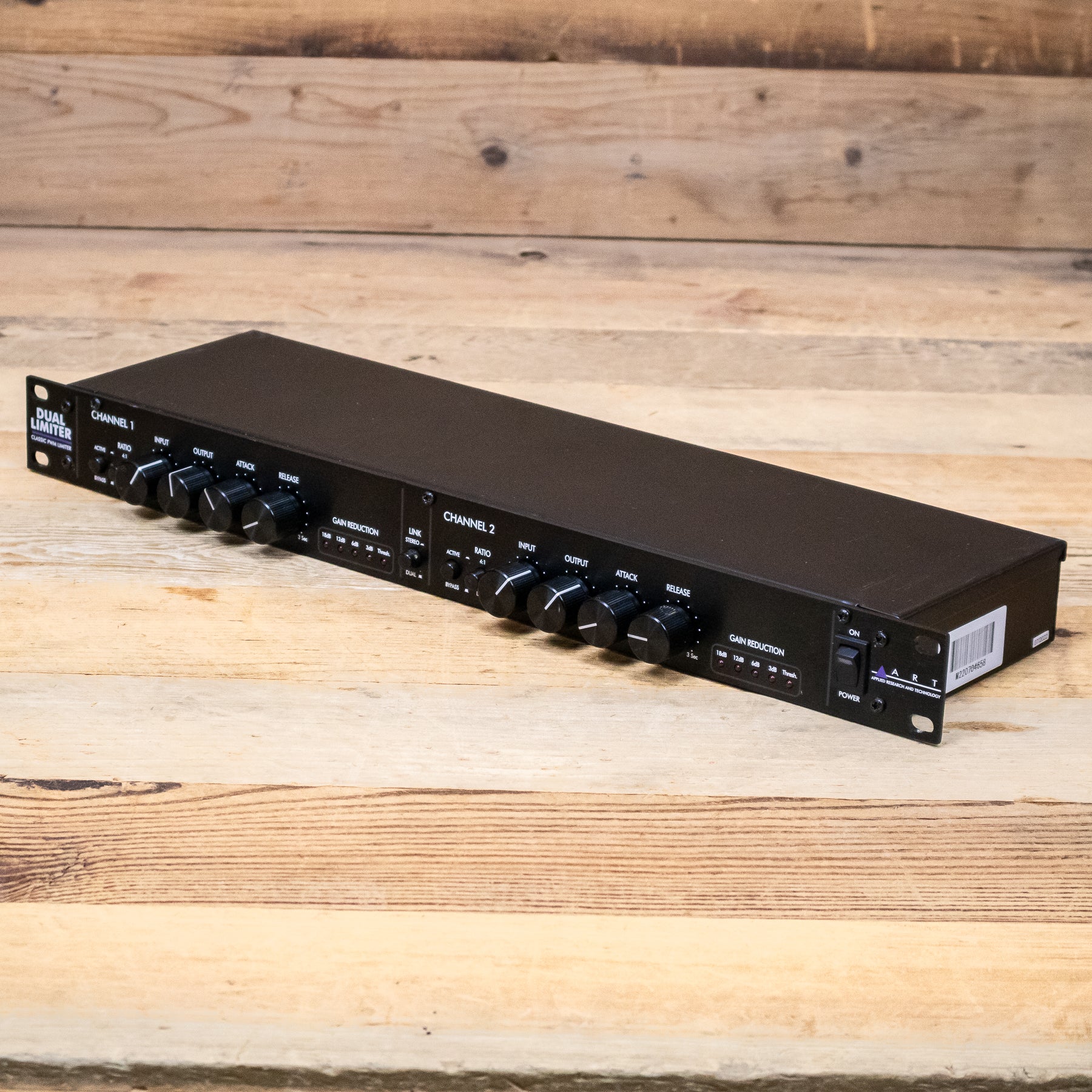

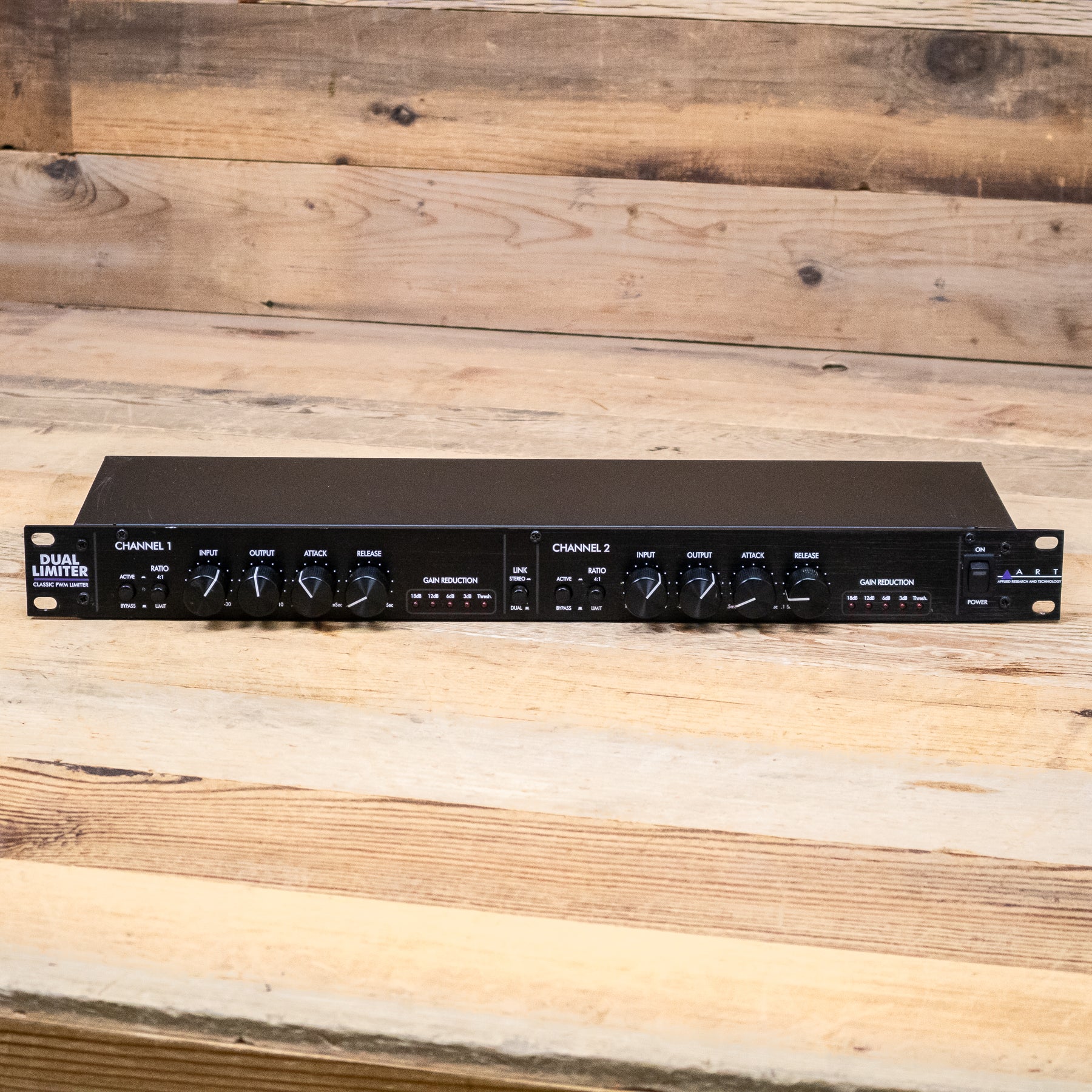

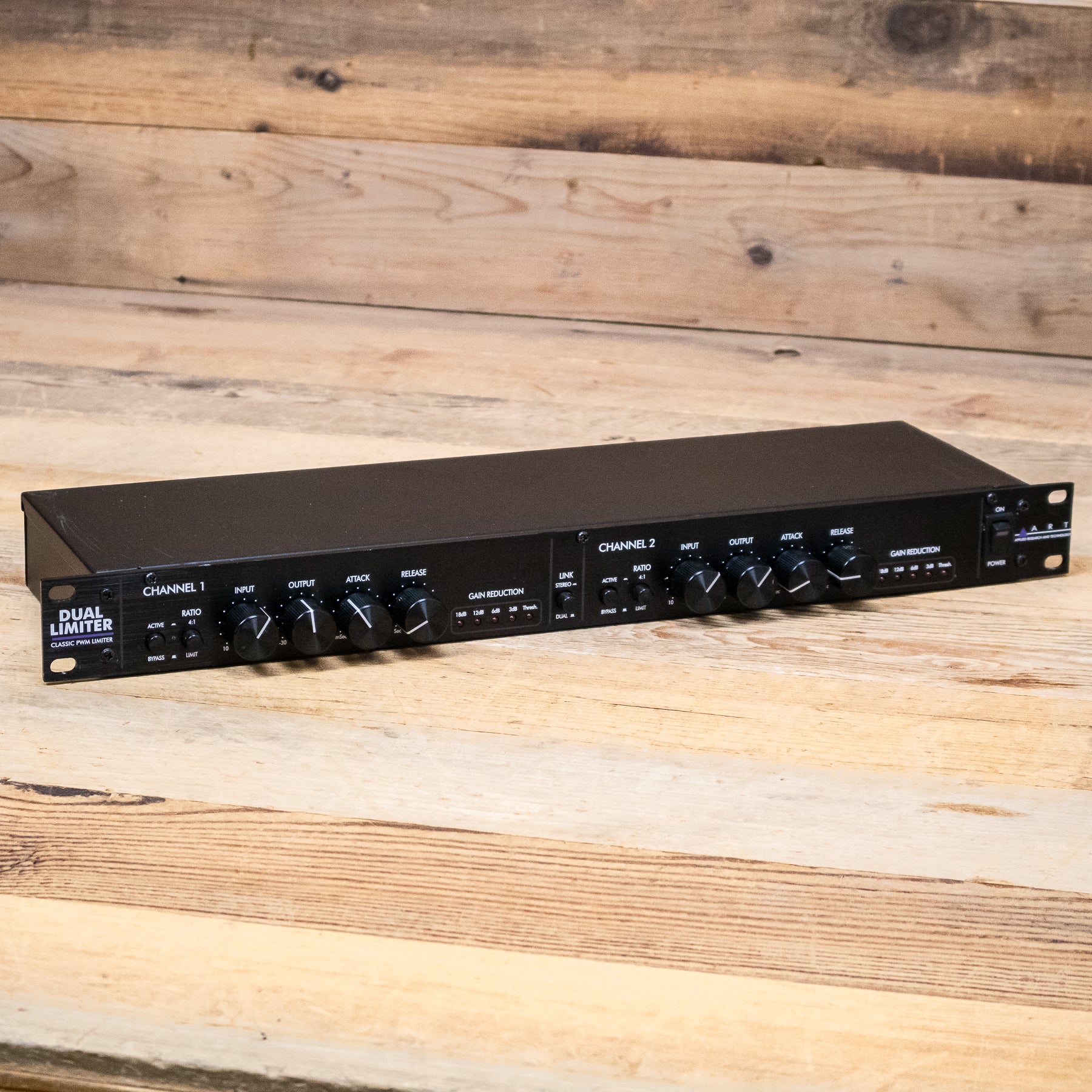

ART Dual Limiter 2-Channel Classic PMW Limiter

The DUAL LIMITER has a unique design that will enhance the sonic textures of your audio system for years to come. Developed in partnership with studio and live-sound engineers, the DUAL LIMITER is very musical.

The heart of the Dual Limiter is a unique PWM gain control circuit. Combined with its' intelligent detector, the result is a Classic sounding compressor/ limiter without the traditional nose and distortion artifacts.

The DUAL LIMITER was designed and constructed with high quality components, assuring a lifetime of quiet, reliable performance.

Features

• Two channels of dynamics processing
• Selectable stereo linking of channels

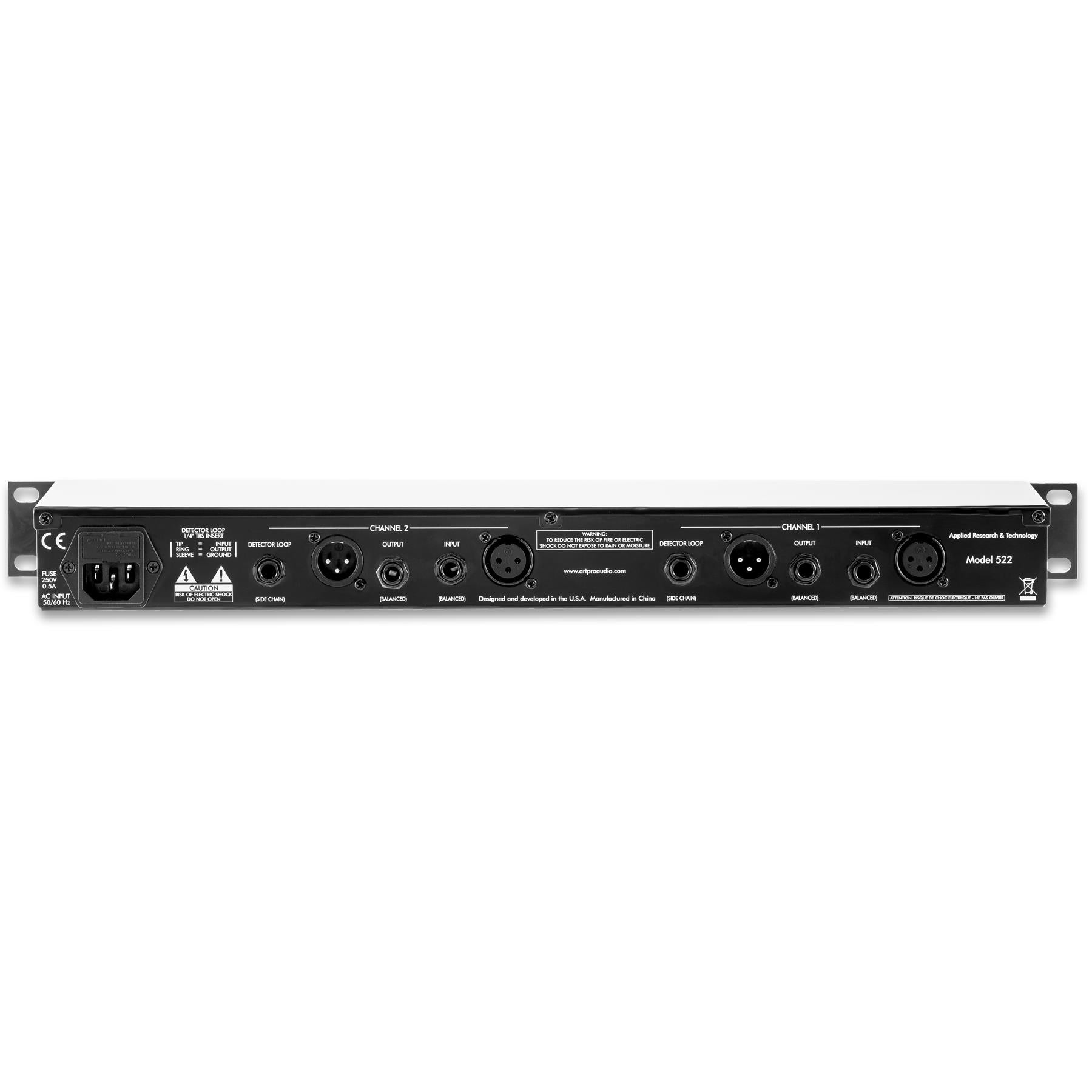

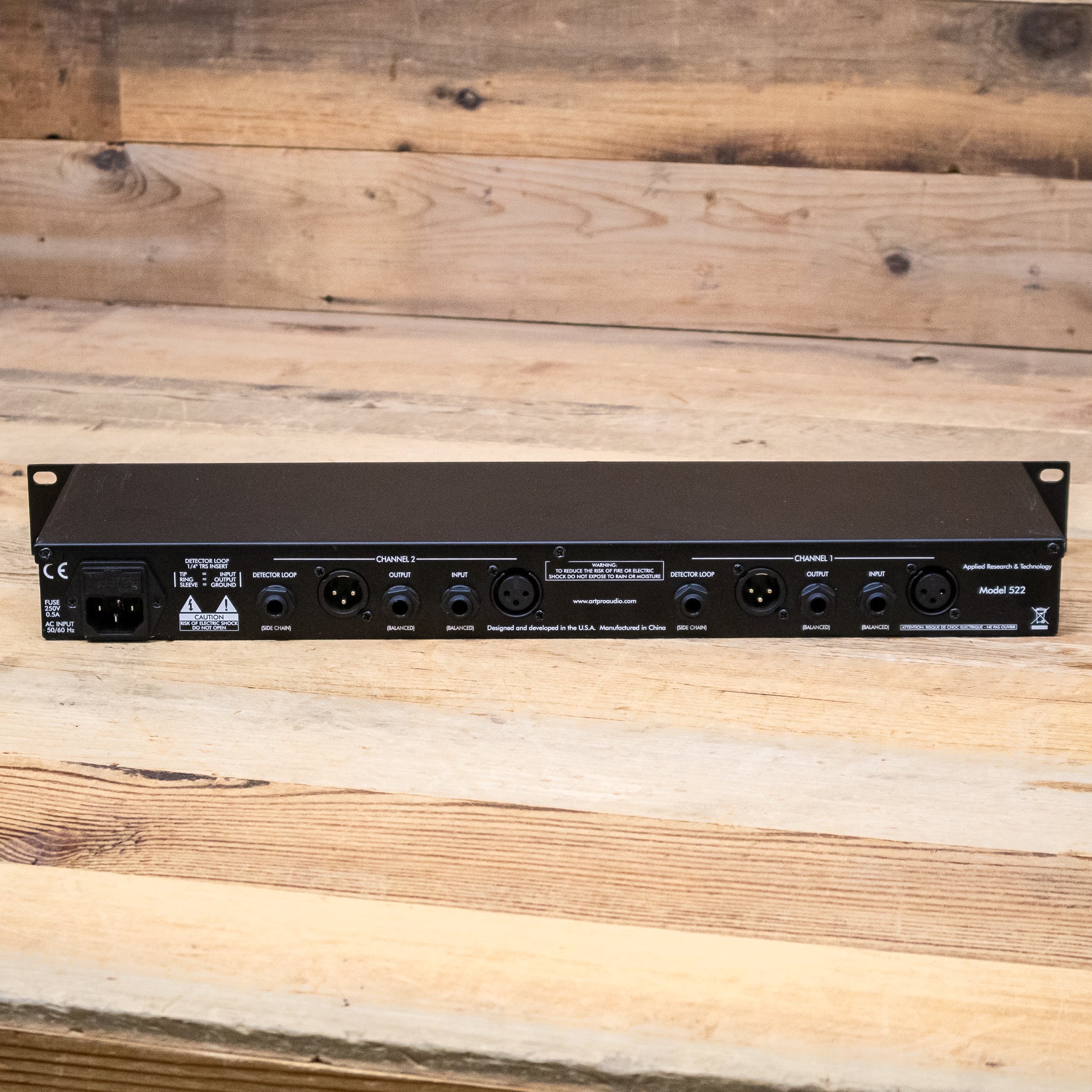

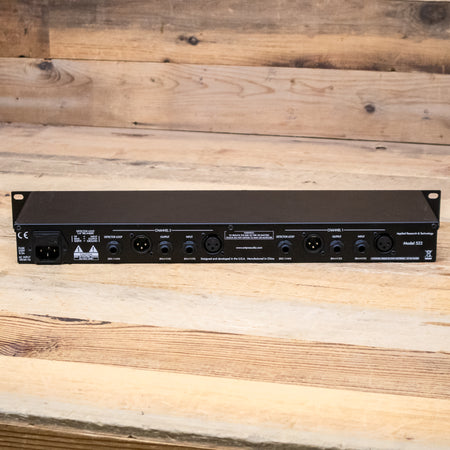

• XLR balanced inputs and outputs
• 1/4" TRS active balanced inputs and outputs
• Variable Attack and Release controls

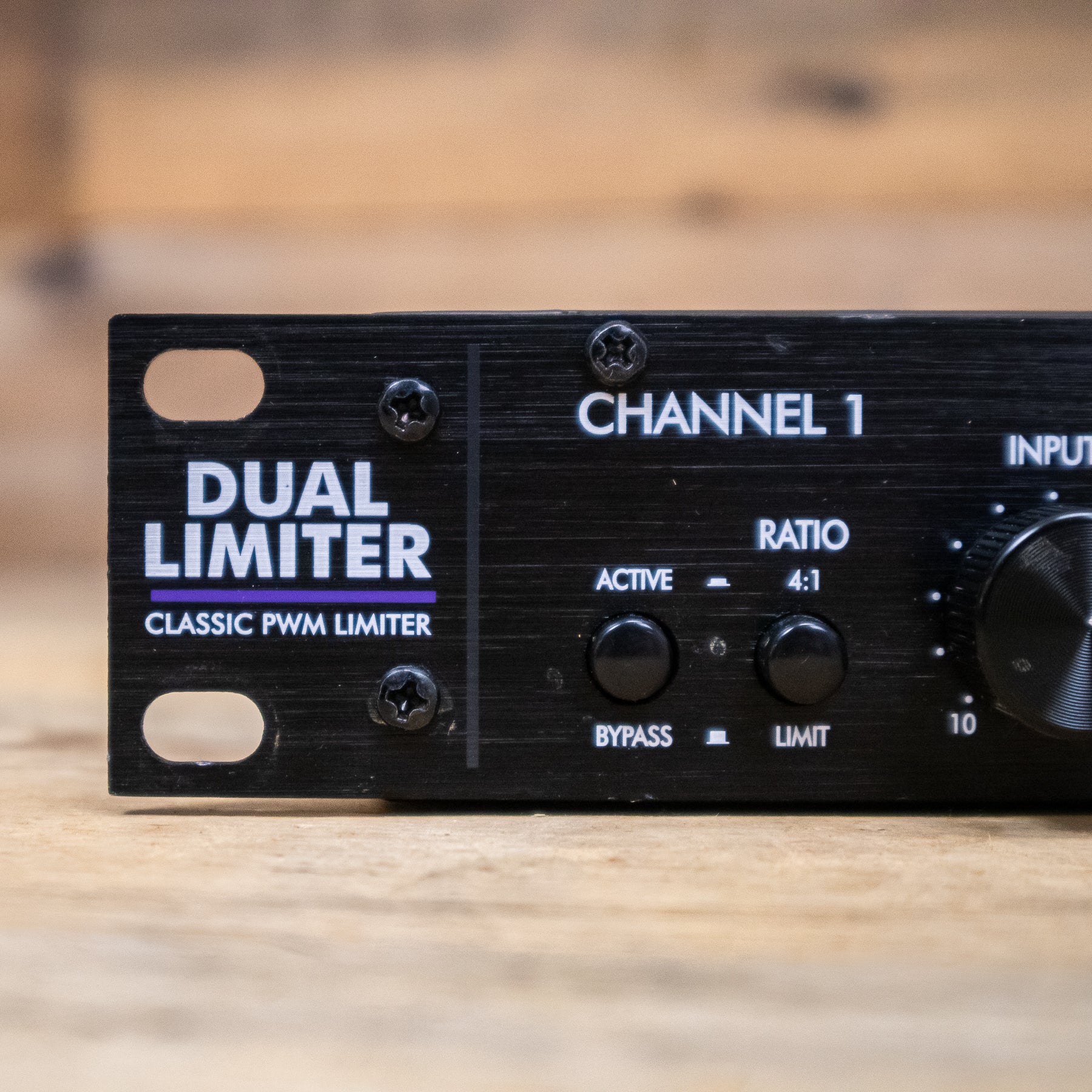

• Selectable Slope
• Hardwire bypass
• 5-segment Gain Reduction
• LED array
• Internal power supply
• 3-year parts and labor warranty

Specifications

• Equivalent Input Noise: -97dBu (20-20kHz)
• Input Impedance: 20k Ohms
• Output Impedance: Balanced/Unbalanced - 150 Ohms
• Maximum Input Level: +20dBu
• Maximum Output Level: +20dBu
• Overall Gain: +40dB max
• Frequency Response: 10Hz to 30kHz (+/- 1dB)
• Dynamic Range: >105dB (20-20kHz)
• Attack Time: 0.5mSec. to 50mSec., variable
• Release Time: 100mSec. to 3 Sec., variable
• Slope: 4:1 or >20:1, switchable (OR 2:1 or 1.5:1 when patching output to det. loop input)
• Total Harmonic Distortion: 0.03% (typical) @ 0dBm Out
• Power Requirements: USA - 105 to 125 VAC / 60 Hz, 1/2A fuse, <15W
• Dimensions: 1.75" H x 19" W x 5.9" D (44.5mm x 482.6mm x 150mm)
• Weight: 4.7 lbs (2.1 kg)

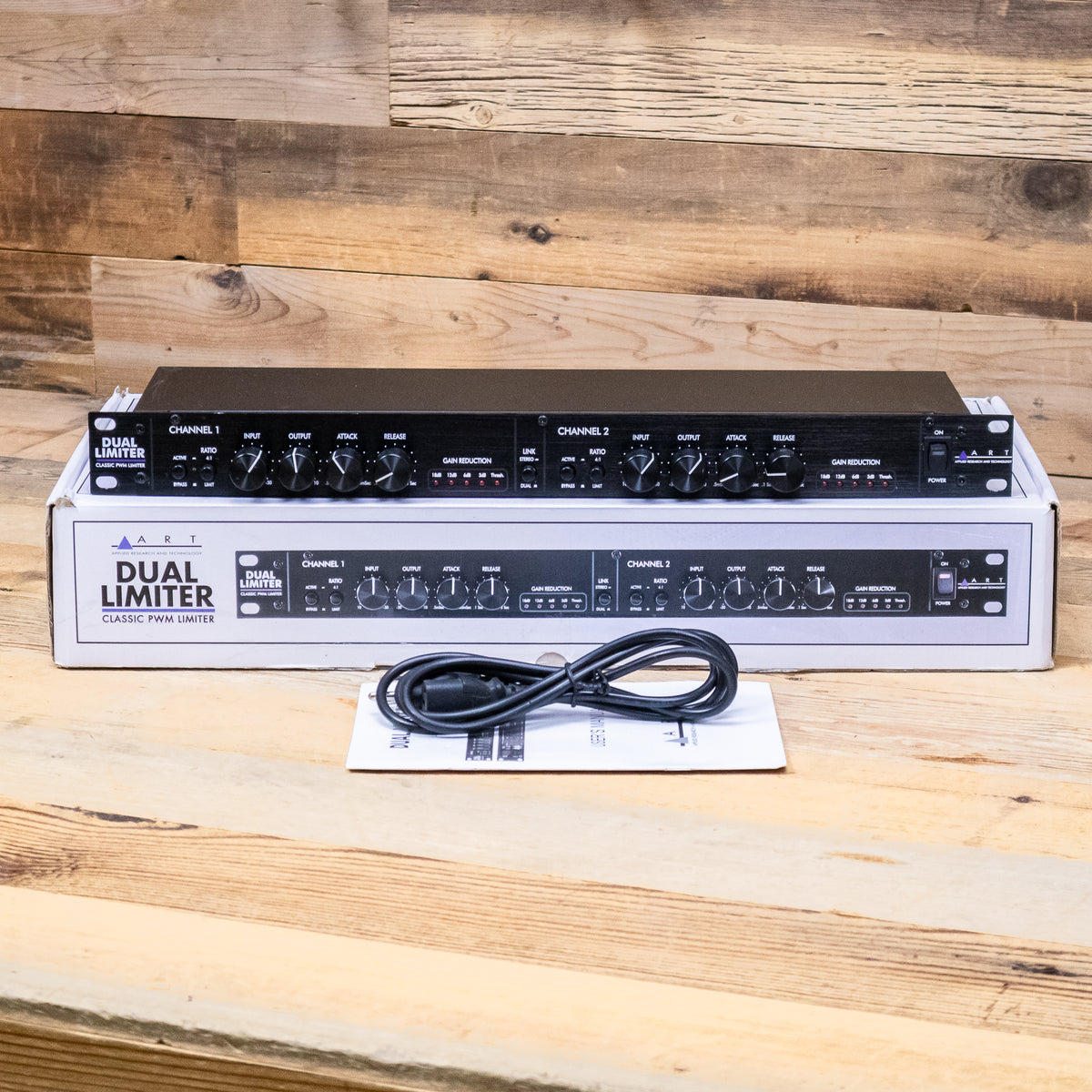

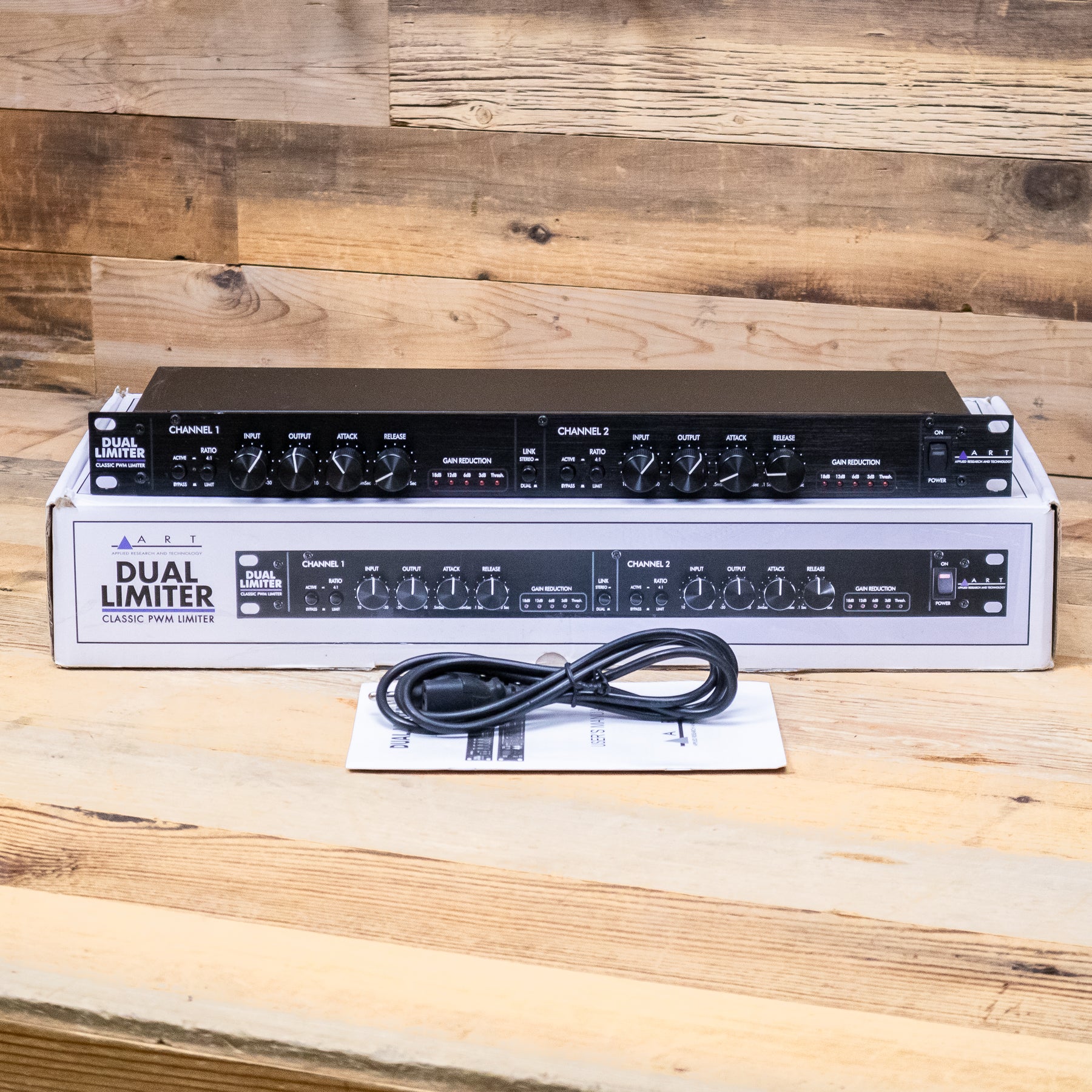

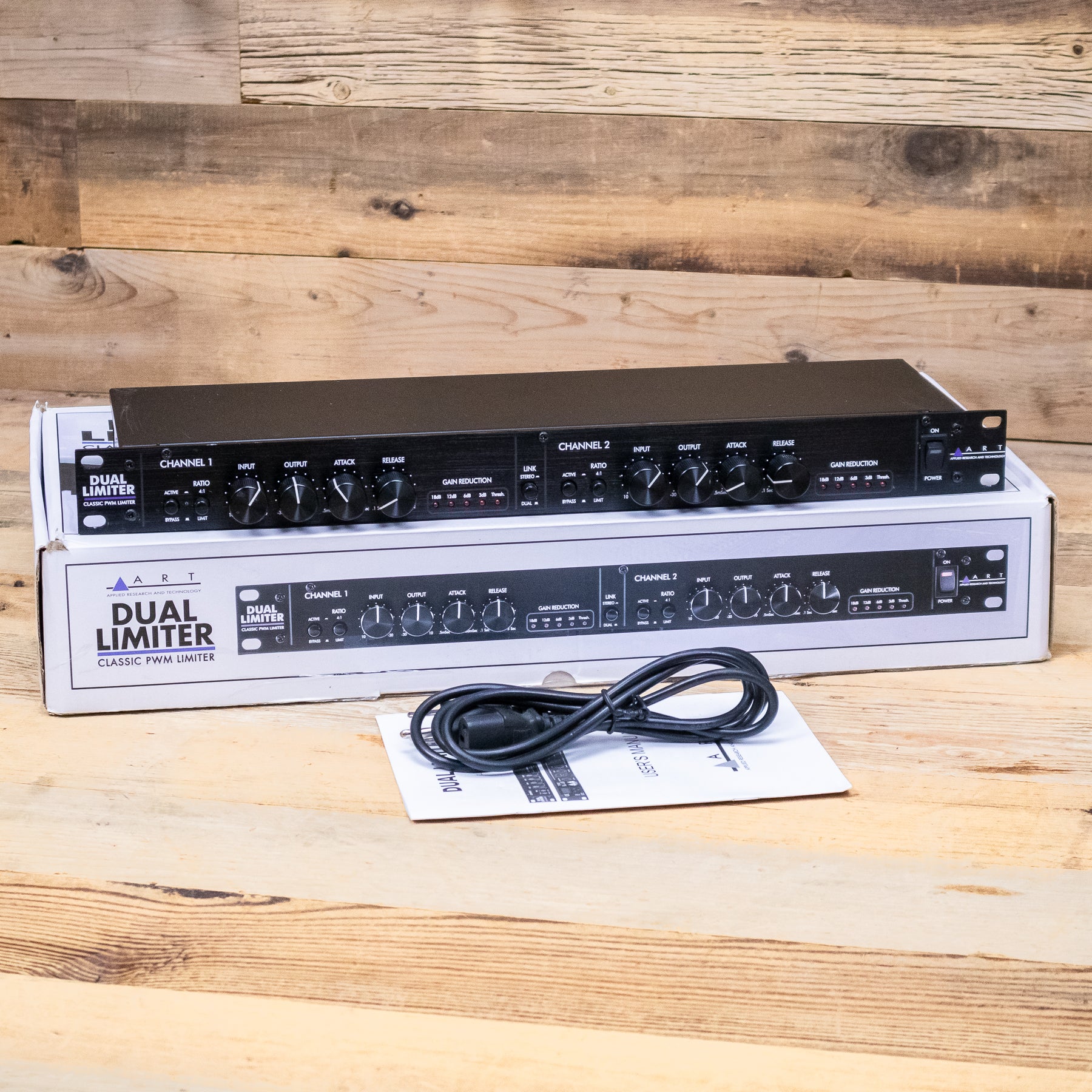

What's Included

• ART Dual Limiter
• Power Cable
• User Manual

Warranty Period

3 Years
