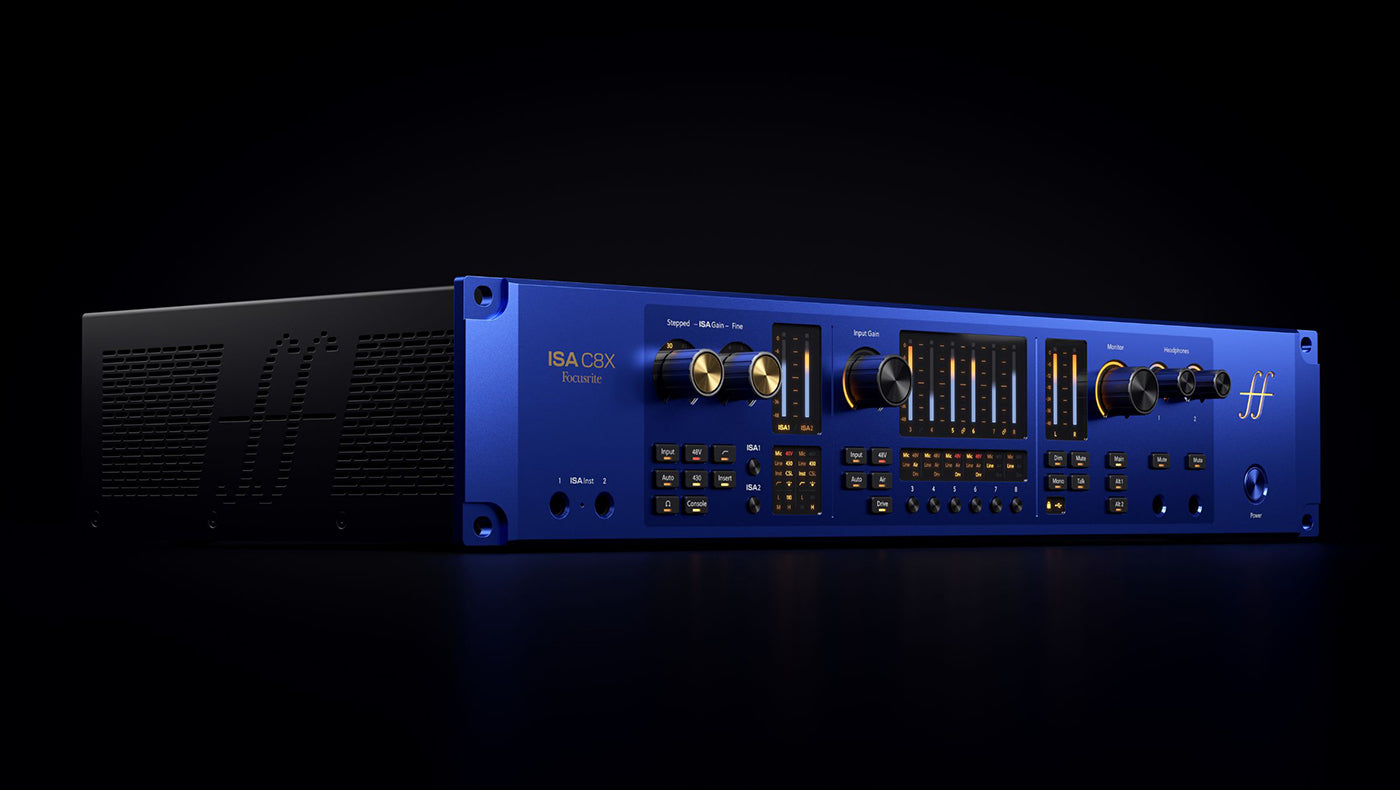

The Focusrite ISA C8X marks a significant moment for modern studios: the classic ISA sound, long respected in high‑end analogue front ends, is now available in a fully integrated USB‑C audio interface. For the first time, engineers can access genuine ISA transformer‑based preamps and advanced digital control in a single, comprehensive recording hub. At Pixel Pro Audio, we’ve worked with the ISA series for years, and the C8X stands out as one of the most complete studio solutions Focusrite has ever released.
Eight Preamps with True ISA DNA
The C8X features eight digitally controlled microphone preamps, including two authentic ISA channels built around Lundahl LL1538 transformers. These are the same transformers that helped define the original ISA 110 modules designed by Rupert Neve in the mid‑1980s. They deliver the familiar combination of clarity, headroom, and musical low‑end weight that ISA users expect.
The ISA channels on the C8X offer up to 79 dB of gain, switchable impedance, high‑pass filtering, and both Console and 430‑style Air modes for added tonal shaping. The remaining six Focusrite preamps provide 69 dB of clean gain, extremely low noise, and their own analogue Air circuitry. All eight channels include balanced inserts for integrating outboard gear directly into the signal path.
Built for Hybrid Studios
The C8X is designed to serve as the centerpiece of a modern studio. With 26 inputs and 28 outputs, it supports everything from multi‑mic drum sessions to immersive monitoring setups. Twelve balanced line outputs allow for mono, stereo, or up to 7.1.4 speaker configurations. ADAT, S/PDIF, MIDI, and Word Clock provide the flexibility needed for hybrid workflows, and the two front‑panel instrument inputs route through the ISA transformers for a true console‑style DI experience.
High‑Performance Conversion
Focusrite equipped the C8X with converters derived from their RedNet range, offering 24‑bit/192 kHz performance and a dynamic range of 125 dB. The result is a transparent, detailed capture path that pairs well with the character of the ISA preamps.
Full Digital Control and Auto Gain
Every preamp parameter can be controlled from the front panel or via Focusrite Control 2 software. Gain, impedance, filters, Air modes, and routing are all accessible remotely, making the C8X ideal for control‑room‑to‑live‑room workflows. Auto Gain is available on all eight channels, allowing the interface to set levels automatically in seconds.
The Heritage Behind the ISA Sound
The ISA story began in 1985 when Sir George Martin asked Rupert Neve to design a new preamp for AIR Studios. The result was the ISA 110, a transformer‑based module known for its musicality, precision, and reliability. That design became the foundation of the Focusrite Forte console and later the standalone ISA series, which has remained a staple in professional studios for nearly four decades.
The ISA C8X is the first interface to bring that heritage directly into a modern USB‑C workflow. It preserves the sonic identity of the original modules while adding the flexibility and control today’s studios expect.
Who is it for?
For engineers and creators who want the unmistakable ISA character without relying on separate preamps or patchbay routing, the C8X offers a streamlined, studio‑ready solution. It’s well suited for multi‑mic recording, hybrid setups, immersive monitoring, and any workflow that benefits from transformer‑based tone paired with high‑end conversion.
At Pixel Pro Audio, we see the ISA C8X as a bridge between classic analogue design and modern digital production. It honors the legacy of the ISA line while delivering the most versatile and complete version of it to date.
