Apogee Symphony I/O MKII 2x6 SE Special Edition Dante + Pro Tools HD Chassis

Apogee Symphony I/O MKII 2x6 SE Special Edition Dante + Pro Tools HD Chassis

Apogee Symphony I/O Mk II 2Ã-6 Special Edition offers the highest quality AD/DA conversion of the Symphony series. Designed specifically for mastering engineers whose critical work demands ultimate sonic performance, 2Ã-6 SE takes advantage of the latest advancements in digital and analog audio technology to offer inputs with 124 dB (A) of dynamic range, THD+N of -116dB and outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB. We dare you to compare these specifications to our competitors â€" 2Ã-6 SE's combined specs outperform just about any AD/DA converter available today.

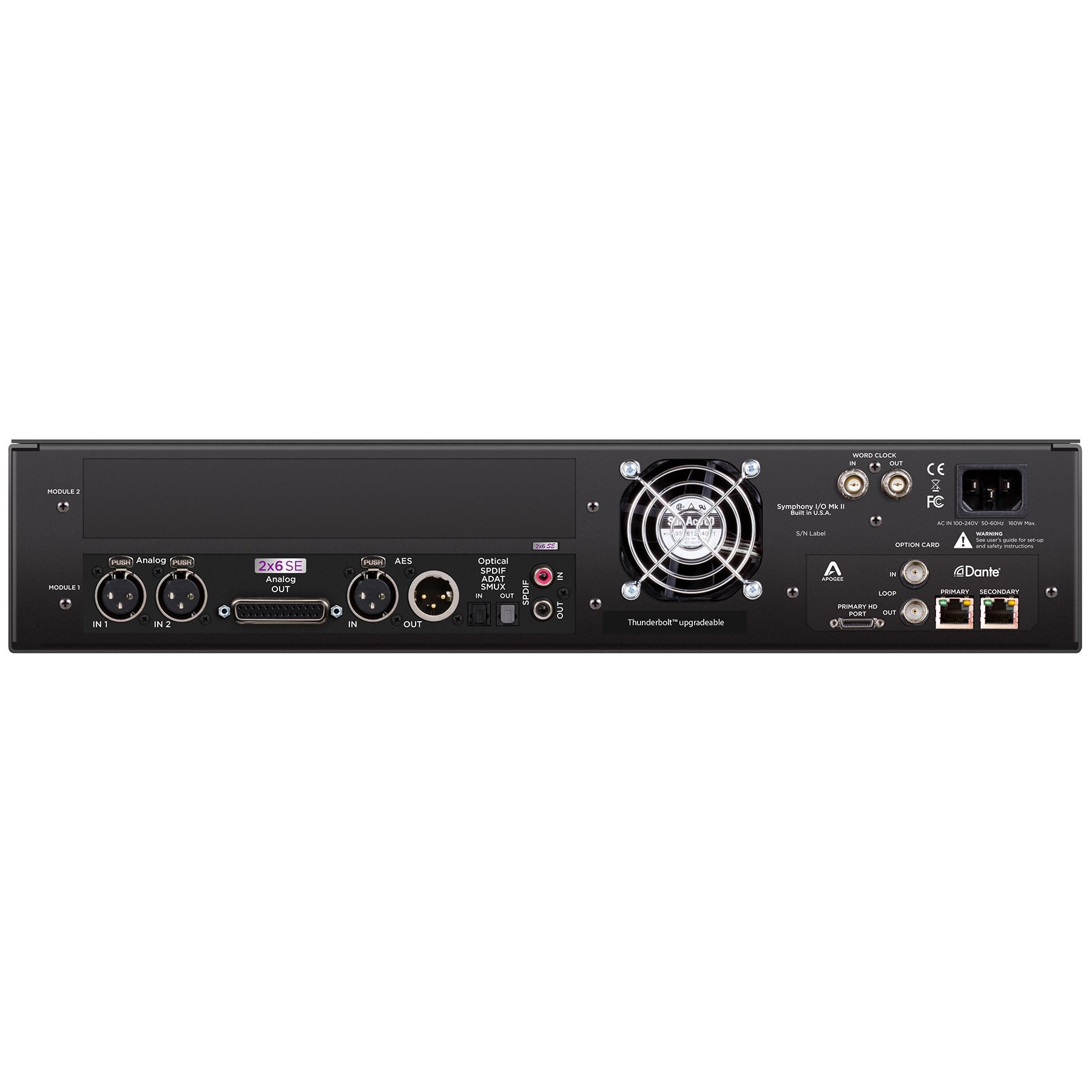

INPUTS:

• Analog IN: 2 balanced inputs on 2 female XLR connectors
• AES IN: Stereo input on 1 female XLR connector
• Optical IN: Supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
• SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
• S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
• S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector

OUTPUTS:

• Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
• AES OUT: Stereo output on 1 male XLR connector
• Optical OUT: Supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
• SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
• S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
• S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector

A/D:

• THD+N of -116dB @23dBu (0.00016%) unweighted
• Dynamic range: 124 dB (A) of dynamic range
• Maximum input levels:
• +4dB setting: +24dBu
• -10dB setting: +6dBV
• Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
• Input impedance: 10K

D/A:

• THD+N of -118dB @ 22dBu (0.00013%) unweighted
• Dynamic range: 131dB (A) dynamic range
• Max output levels â€" ∞ to +24dBu
• Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
• Output impedance: 25 Ohm

Connection:

• Ethernet + Pro Tools | HD

Performance:

• 44.1kHz â€" 192kHz

Computer:

• Mac or PC

Control:

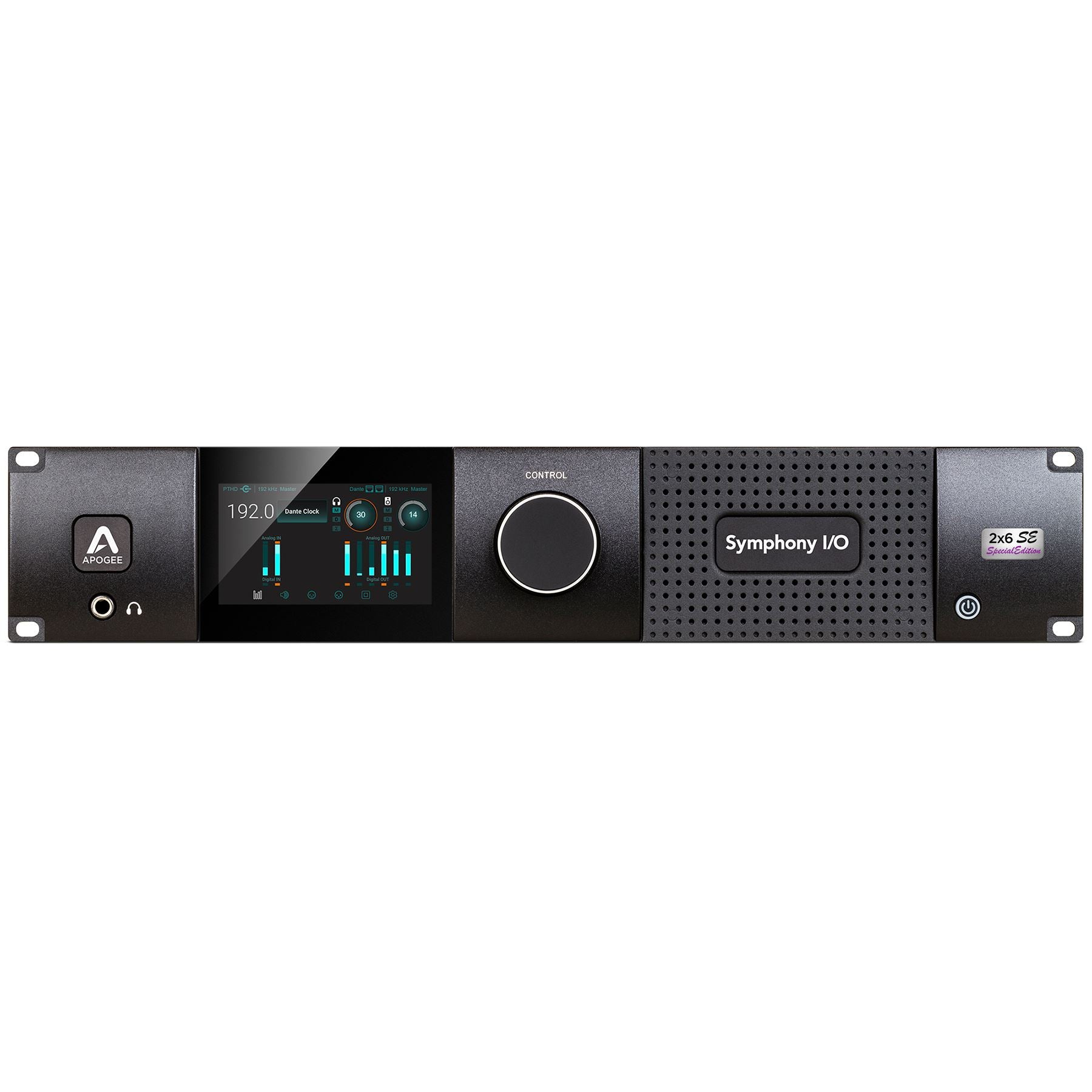

• Apogee Network Control Software (Free download from Apogee) or Front panel touchscreen

What's Included

• Apogee Symphony I/O MKII Dante + Pro Tools HD Chassis
• Apogee Symphony I/O MKII 2x6 SE Special Edition Module
• IEC Power Cable

Warranty Period

1 Year
