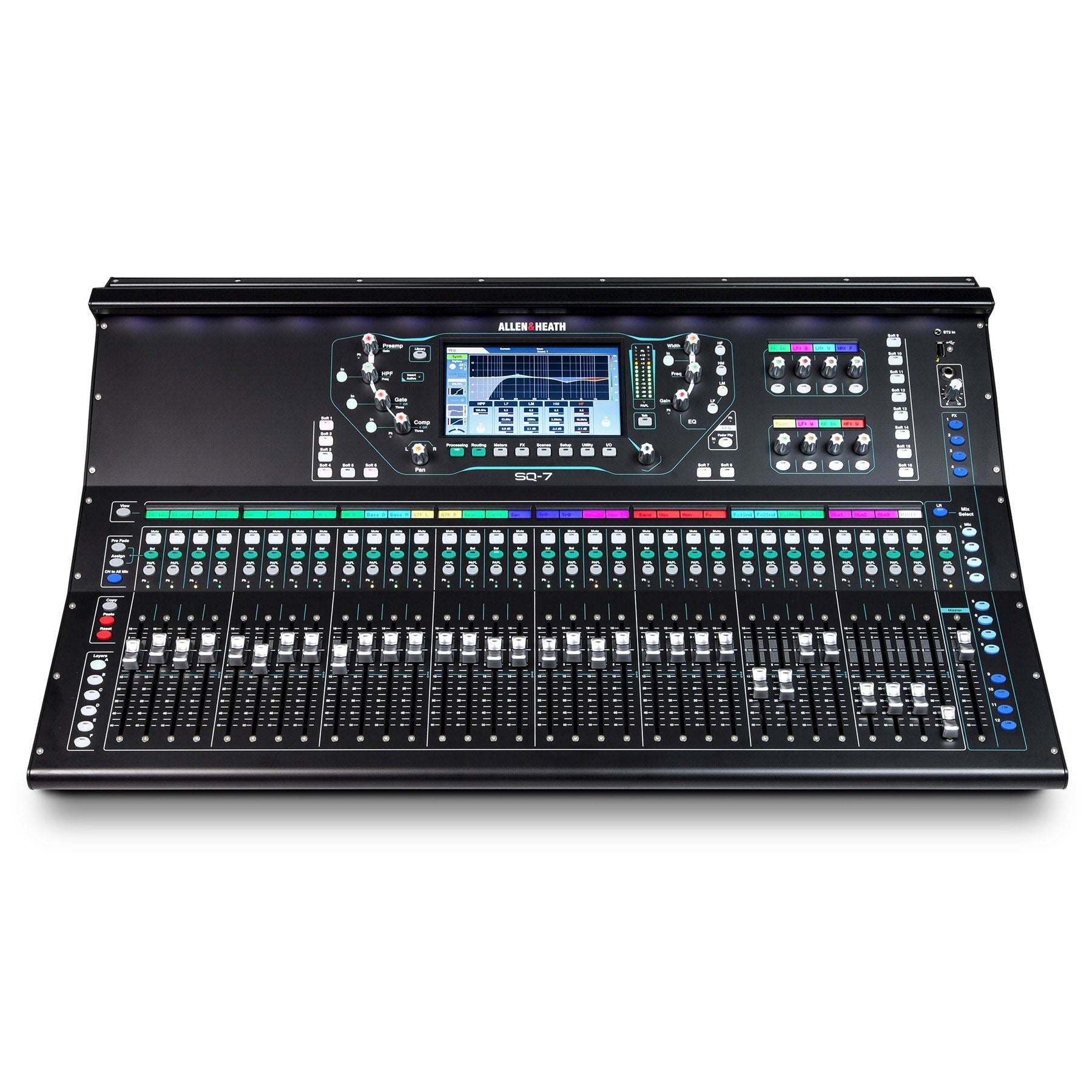

Allen & Heath SQ-7 48-Channel 36-Bus Digital Mixer SQ Series
48 channel / 36 bus digital mixer SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath's revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of <0.7ms. The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.
Powerful Processing SQ comes equipped with all the processing you need to craft the perfect mix. Every one of the 48 inputs has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser, and Peak/RMS compressor for control and shaping of levels and transients. Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required. The XCVI core even allows for every compressor in SQ to have its own parallel path, without phase or coherency worries.
RackExtra FX SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. Every engine has its own dedicated stereo return too, so you don't need to use up any of your 48 input channels.

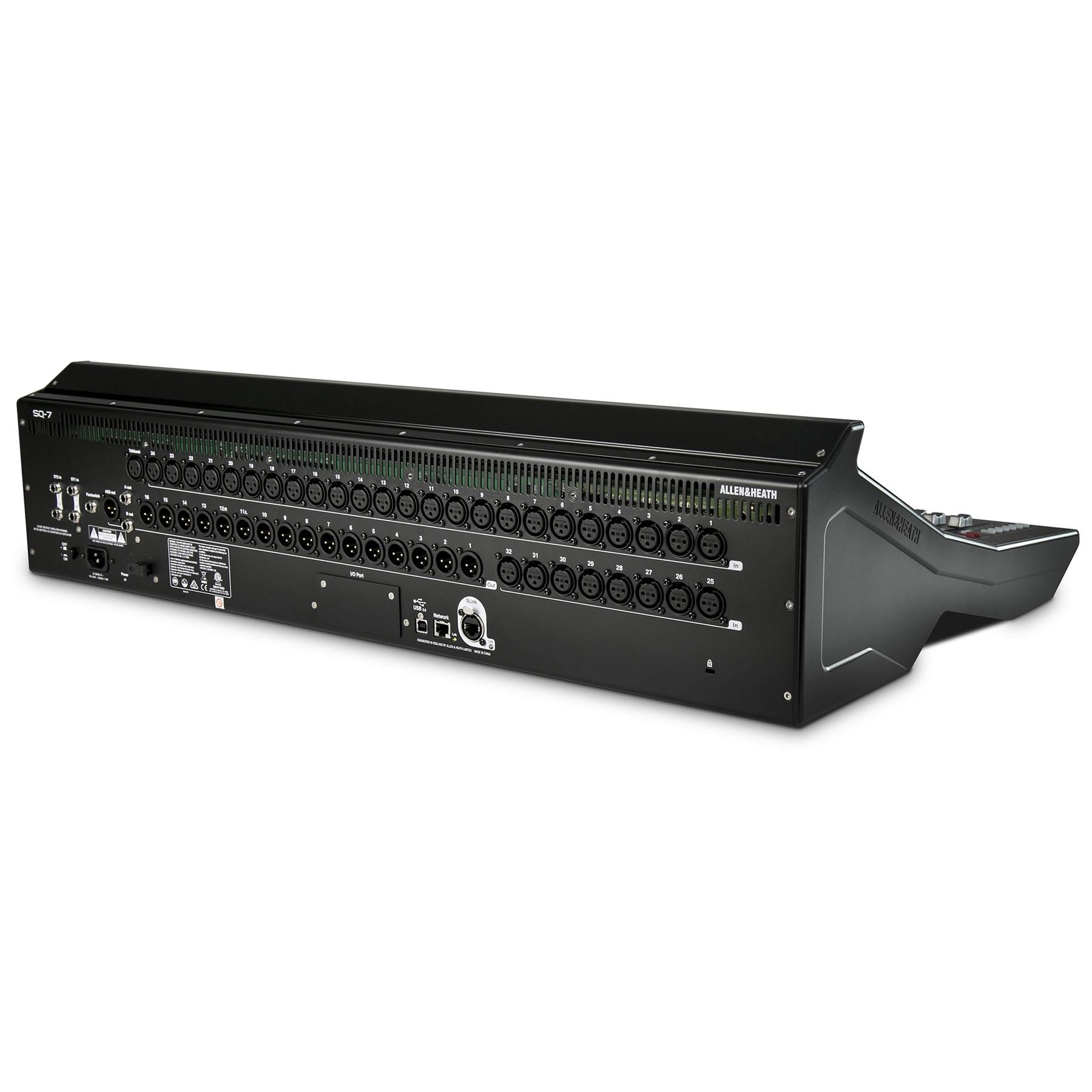

Expandable up to 48 mics SQ has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible, mix 'n' match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system.
The Mixing Experience With each new design, the Allen & Heath team strives to get closer to the ultimate mixing experience. SQ's dashboard is centred around a high-res 7" capacitive touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control. Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the colour strip displays, allowing you to build a mixing environment that mirrors your own workflow. Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour.
Designed for the pro We know that the live environment can be tough on gear - that's why we devised our most punishing regime of testing and retesting yet for SQ. From its 3-tier, all metal chassis to its extruded aluminium light bar, SQ has tremendous strength and rigidity underlying its good looks.
Dante, Waves, MADI and more SQ is the centrepiece of a growing ecosystem of apps, expanders, audio networking, personal mixers and more, allowing you to connect, adapt and expand to your heart's content. It's compatible with leading audio networking standards too - add an audio networking card such as Dante, MADI or Waves to SQ's I/O port and you're ready to integrate with installed systems, provide a digital FoH / Monitor split and more.
Advanced AMM SQ's advanced automatic mic mixers (AMM's) make it a natural choice for mixing conferences, panel talks and TV shows. They're fully integrated in the mixer too, with no extra latency, so you don't need to route the audio to an internal DSP rack or an external plugin system. Two fully independent 24 channel AMM's can be utilised for two zones or combined into a single 48 channel AMM for larger events.
Flexible multitrack recording The integrated SQ-Drive makes it quick and easy to capture a 96kHz multitrack or stereo recording of the show direct to a USB key or drive. No software setup, no soundcard driver issues and no extra laptop to bring to the performance. SQ-Drive is also a smart way to manage walk-in music.
Also provided is a built-in 32x32 96kHz audio interface for multitrack recording, backing tracks or virtual soundcheck applications. The interface is Core Audio and ASIOTM compliant and comes complete with MIDI and DAW control capabilities.
SQ Apps There are two essential apps for SQ - SQ MixPad for engineers and SQ4You for performers.
SQ MixPad app is available free on iOS, Android, Windows and macOS platforms, providing offline editing and online wired or wireless control of the main mixing functions.
SQ4You is a personal mixing app to accompany SQ series mixers, allowing up to 8 performers to control their own monitor mixes from their Android or iOS devices and freeing the audio engineer to focus on the front-of-house sound.
96kHz FPGA processing
48 Input Channels
DEEP Processing ready
33 Faders / 6 Layers
12 Stereo mixes + LR
3 Stereo Matrix
8 Stereo FX Engines + dedicated stereo returns
7" capacitive touchscreen
SLink port for remote audio / expansion
64ch I/O Port for audio networking
32Ãƒ—32 USB audio interface
SQ-Drive direct recording to USB
Chromatic channel metering
Integrated LED illumination
Dedicated physical controls
16 Assignable SoftKeys
8 Assignable Soft Rotaries
Channel LCD displays
Allen & Heath SQ-7 48-Channel 36-Bus Digital Mixer
