This DBX 1046 4-Channel Compressor/Limiter comes with a Power Cable.

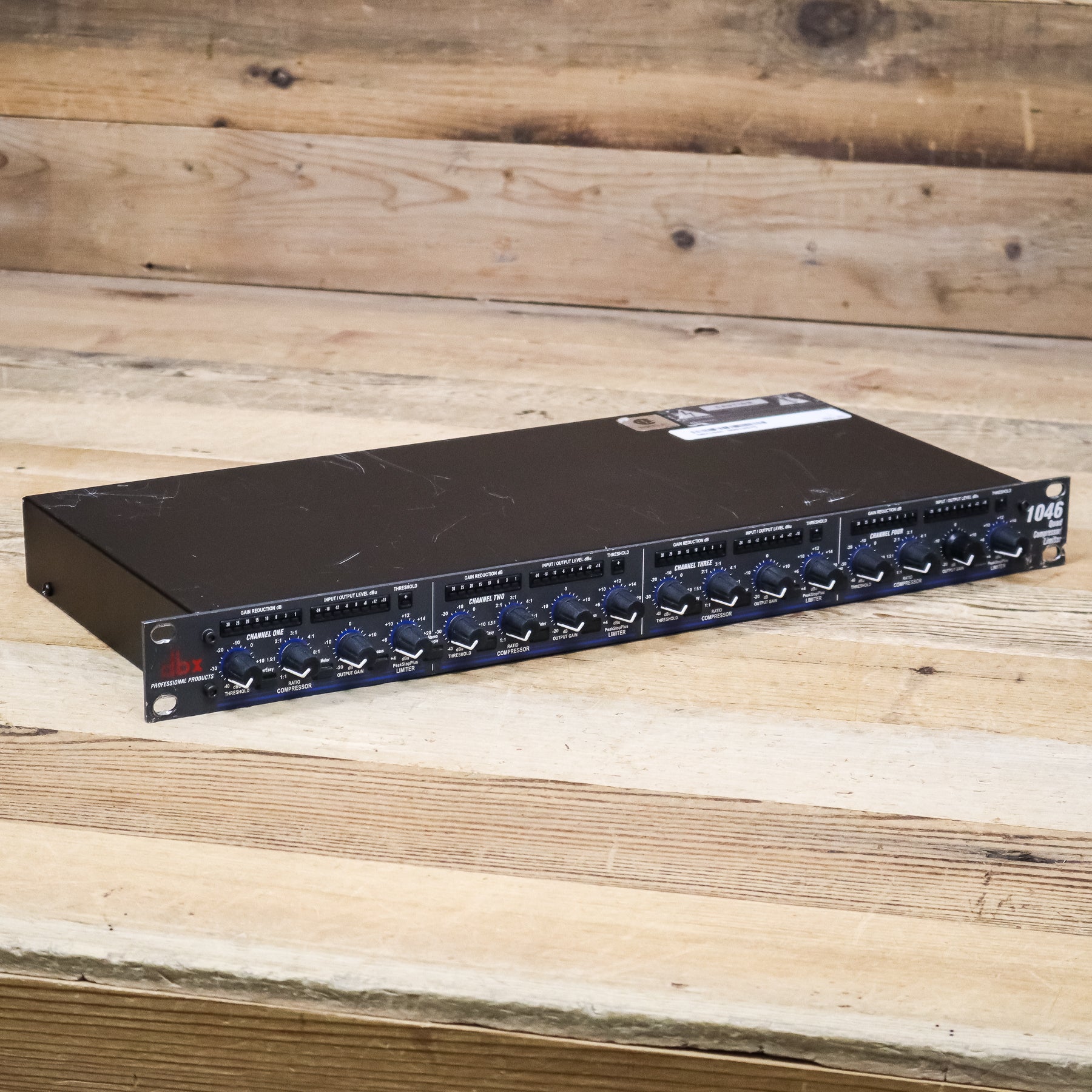

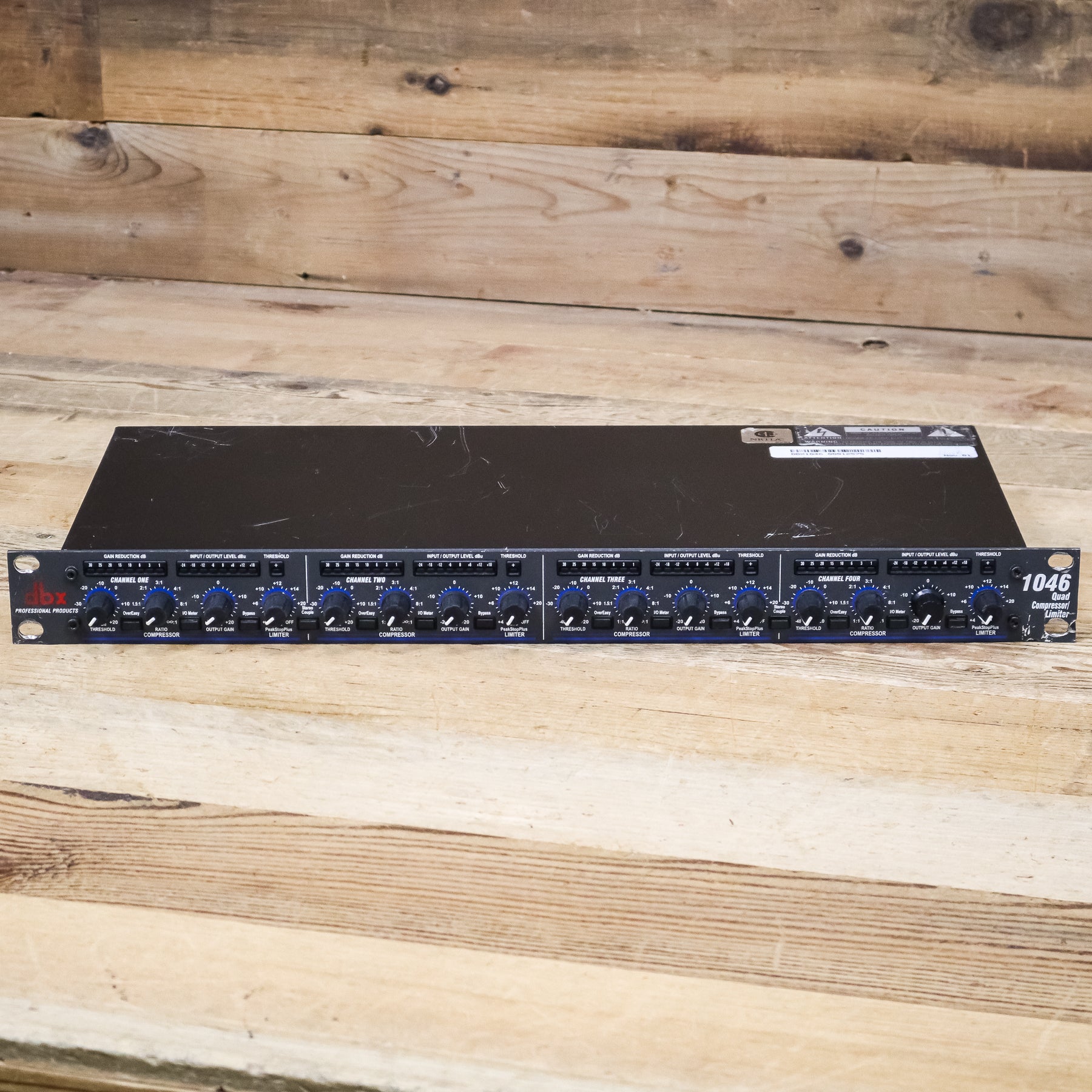

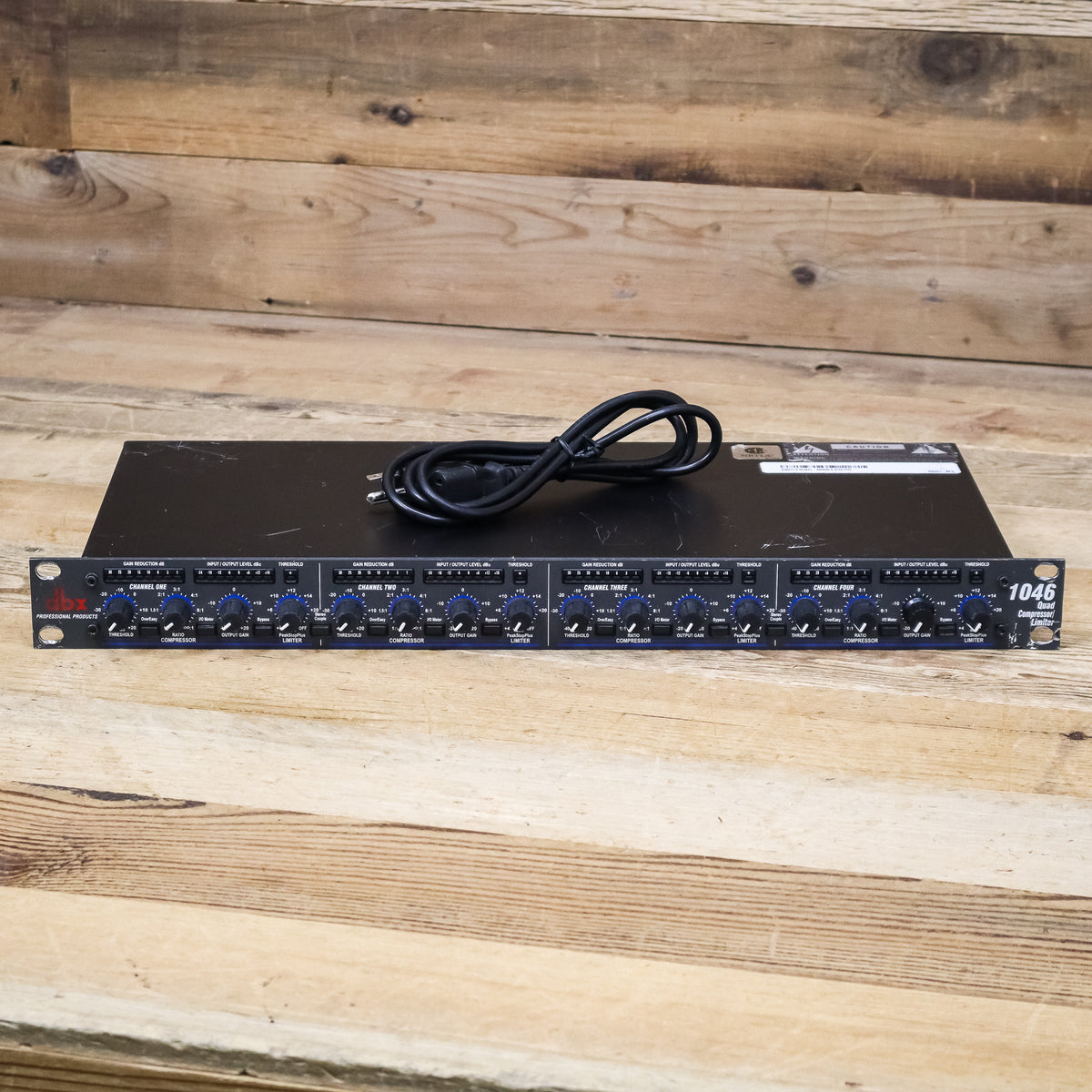

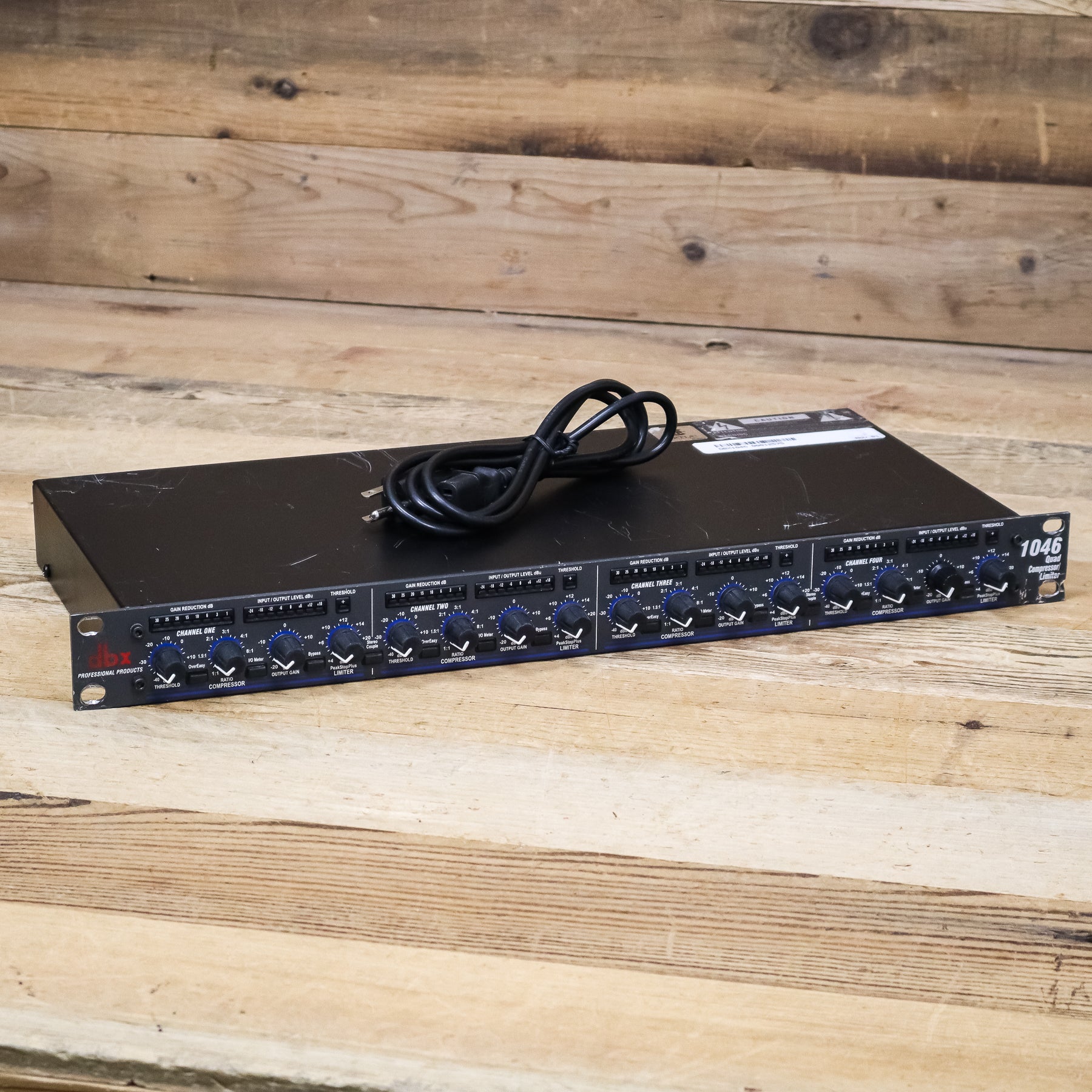

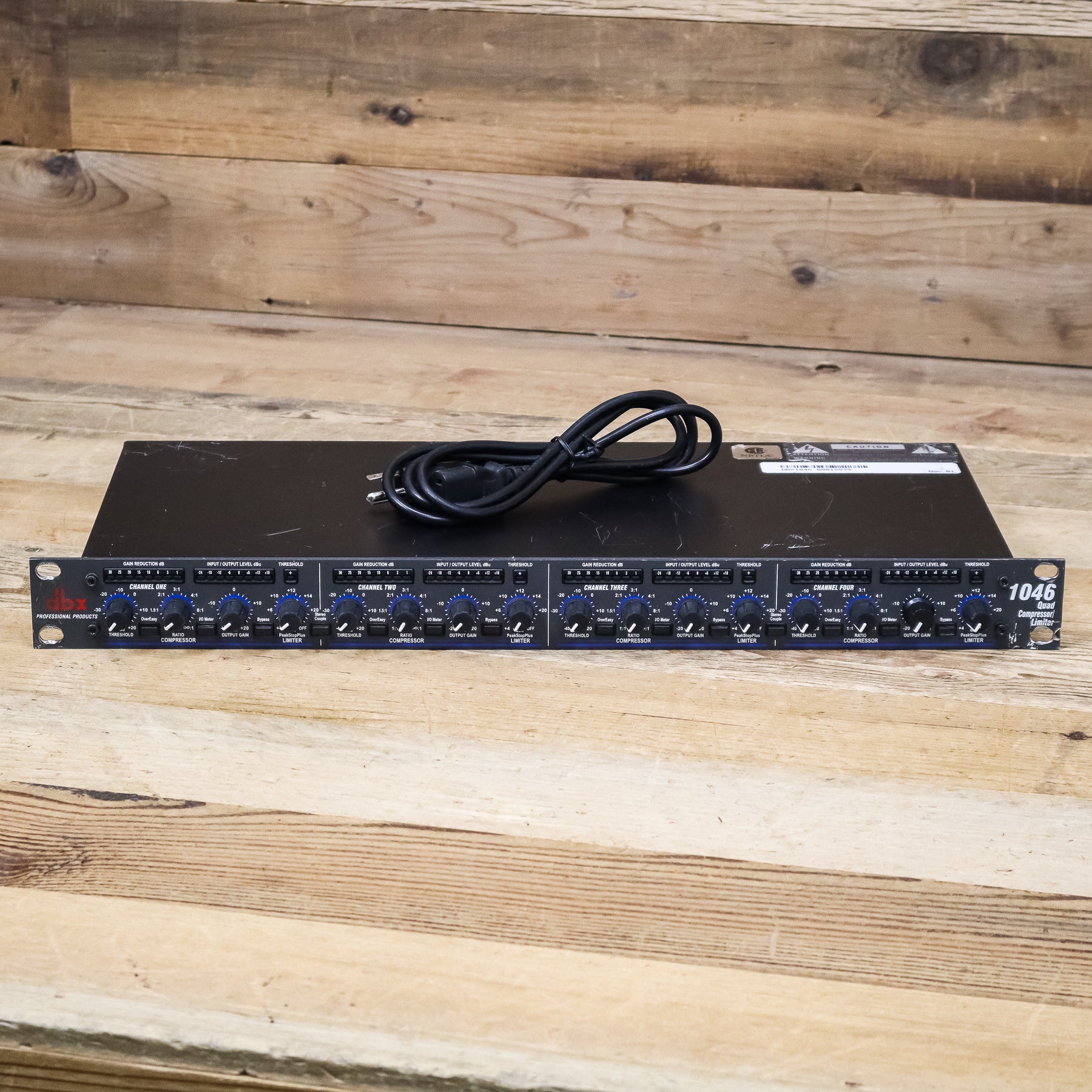

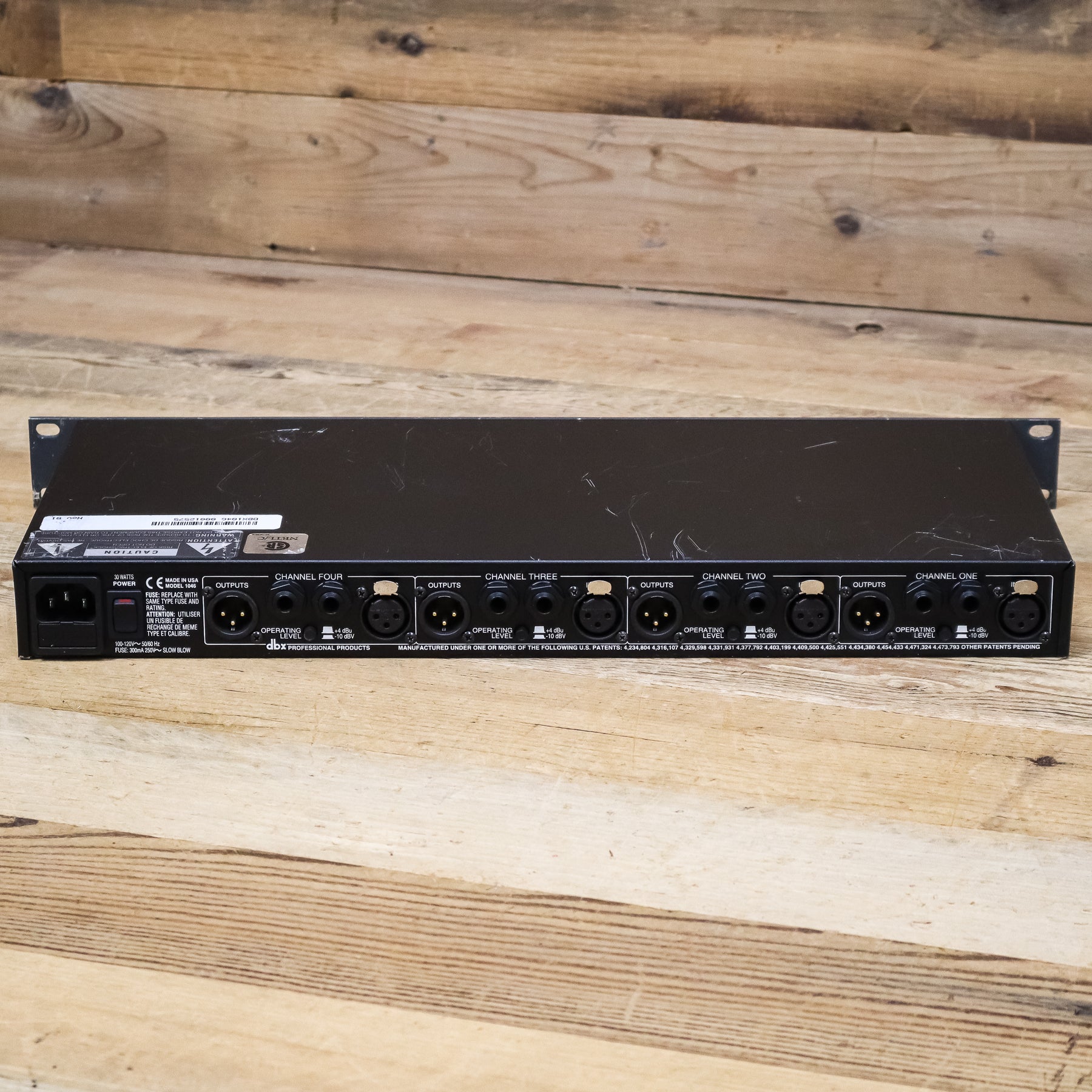

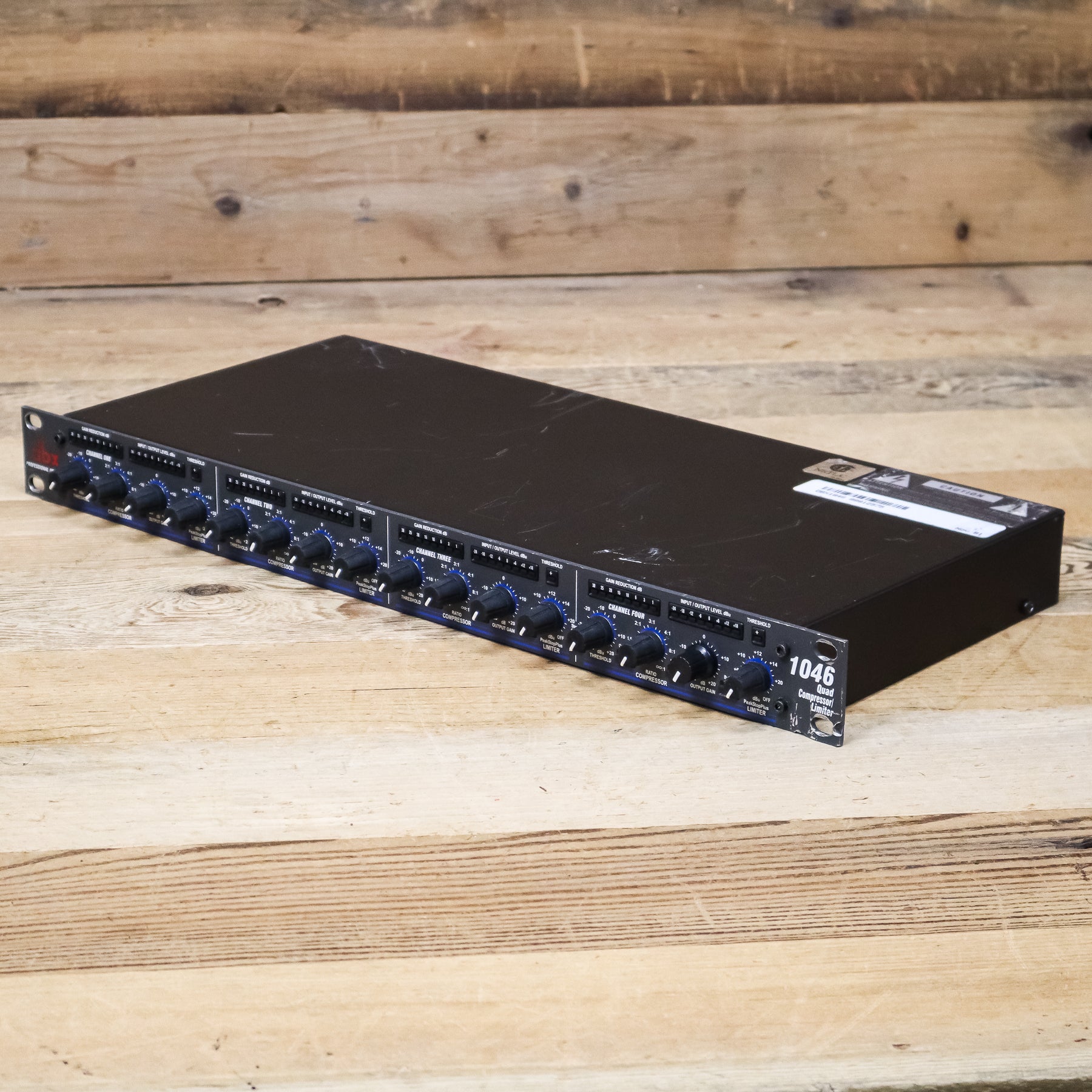

Condition: This unit is in good condition with normal wear, including some scratches on the top that won't be visible when racked, and a slight indentation on the back of the unit near the power supply, which doesn't affect operation of the unit at all. This uni has been fully tested and works great. Please see pictures for details on item condition.
Product Details: In today's recording and sound reinforcement environments, the need for multiple channels of high quality, easy to use compression is growing rapidly. The new dbx® 1046 is designed to provide the audio professional with just that: 4 channels of great sounding dbx compression for a variety of applications. Incorporating the industry standard dbx designs and the latest available manufacturing techniques, the dbx 1046 provides pristine sonic quality with that classic dbx sound.
The 1046 provides 4 channels of smooth classic dbx OverEasy® or Hard Knee compression that are perfectly suited for use on individual tracks of your multitrack recorder, and in virtually all applications the separate channels can be individually interfaced and used for entirely independent purposes. Additionally the newly developed PeakStopPlus™ is ideal for protecting your system from the oppressive peaks that can take out valuable drivers in your sound reinforcement rig or studio monitors.
All four channels have the following controls:
Threshold - allows you to set the level at which the compressor starts affecting the gain
OverEasy - allows you to select between soft compression for overall gain control or Hard Knee compression based on the characteristics of the original dbx 160.
Ratio - allows you to set the slope of gain reduction affecting the signal over the threshold level.
Input/Output Meter - allows you to set the meter to check the input and output levels for maximum signal-to-noise ratio and best level matching.
Output Gain - allows you to add make-up gain or to adjust the output level for that channel to match the next device's input gain.
Bypass - hard wire bypass allows you to hear how the compressor is affecting your signal.
PeakStopPlus - allows you to set the maximum signal level you want to pass through this channel. While it's virtually impossible to eliminate distortion, the PeakStopPlus circuit does it gracefully and effectively with minimal distortion.
Stereo Link - allows you to link channels 1&2 and 3&4 for two channels of true stereo compression.
All four channels feature balanced gold plated XLR and 1/4" inputs and outputs, and switchable +4dBu or -10dBV operating level to interface each individual channel with any other device.
So whether you need to control the level, placement in the mix, or overall characteristics of 4 independent signals or control the gain leveling on a couple of stereo pairs, the dbx 1046 is for you.
